6x12 Intense-Air Wall Vent Cover - High-Airflow Linear Bar Steel Grille
6x12 Intense-Air Wall Vent Cover - High-Airflow Linear Bar Steel Grille
Estimated delivery : Friday, 17 July - Saturday, 25 July.

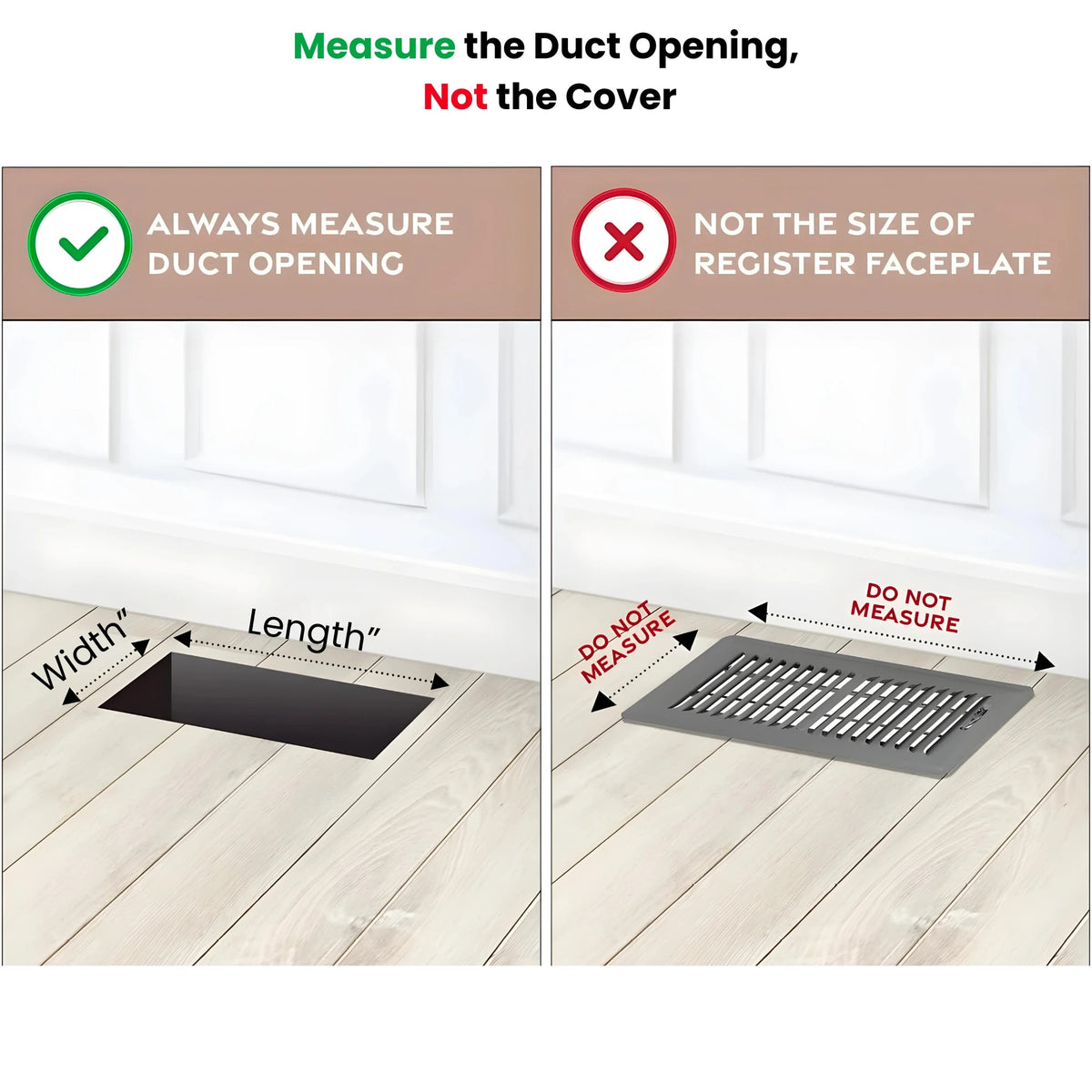

Need a size we don't stock? Order any custom size wall vent →
Couldn't load pickup availability

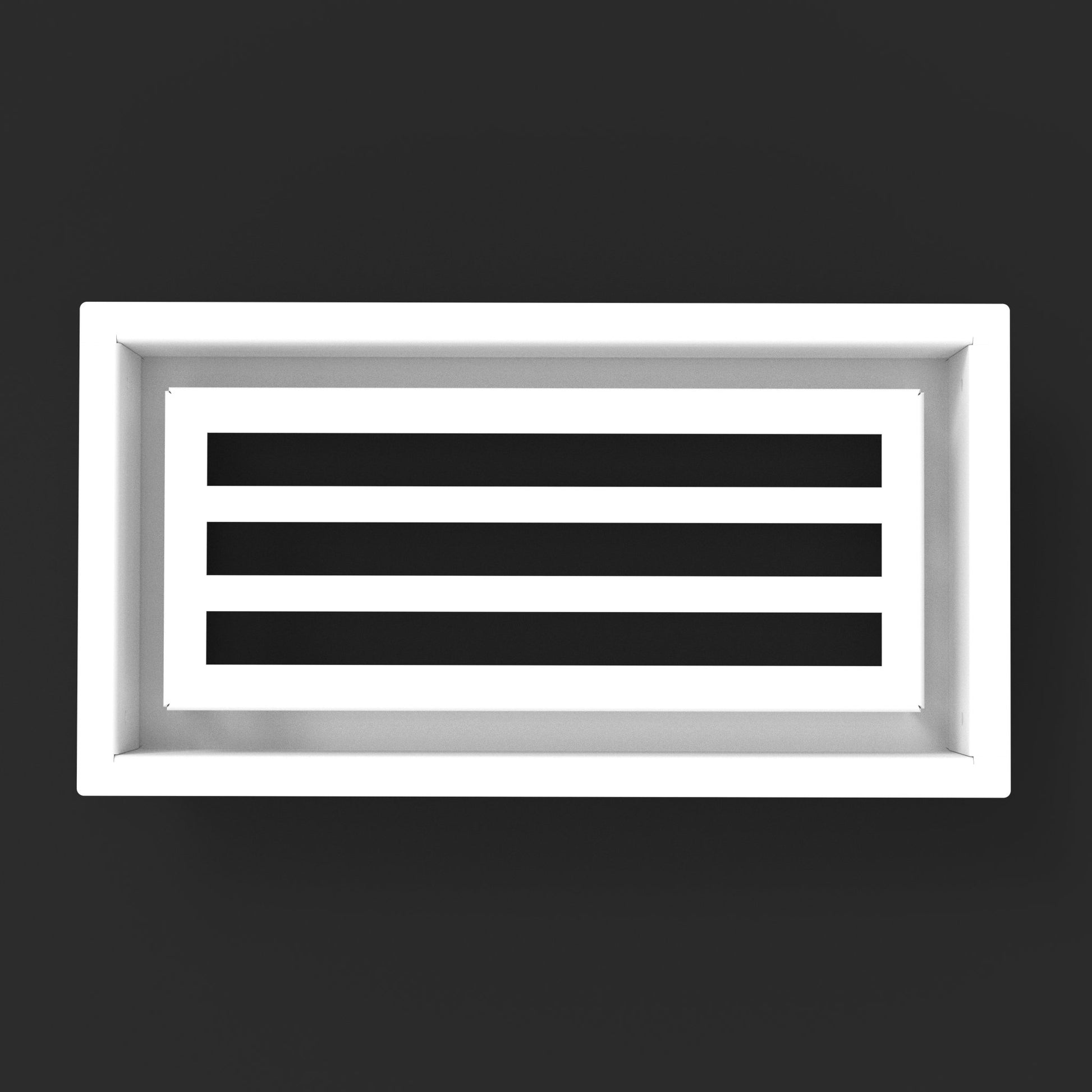

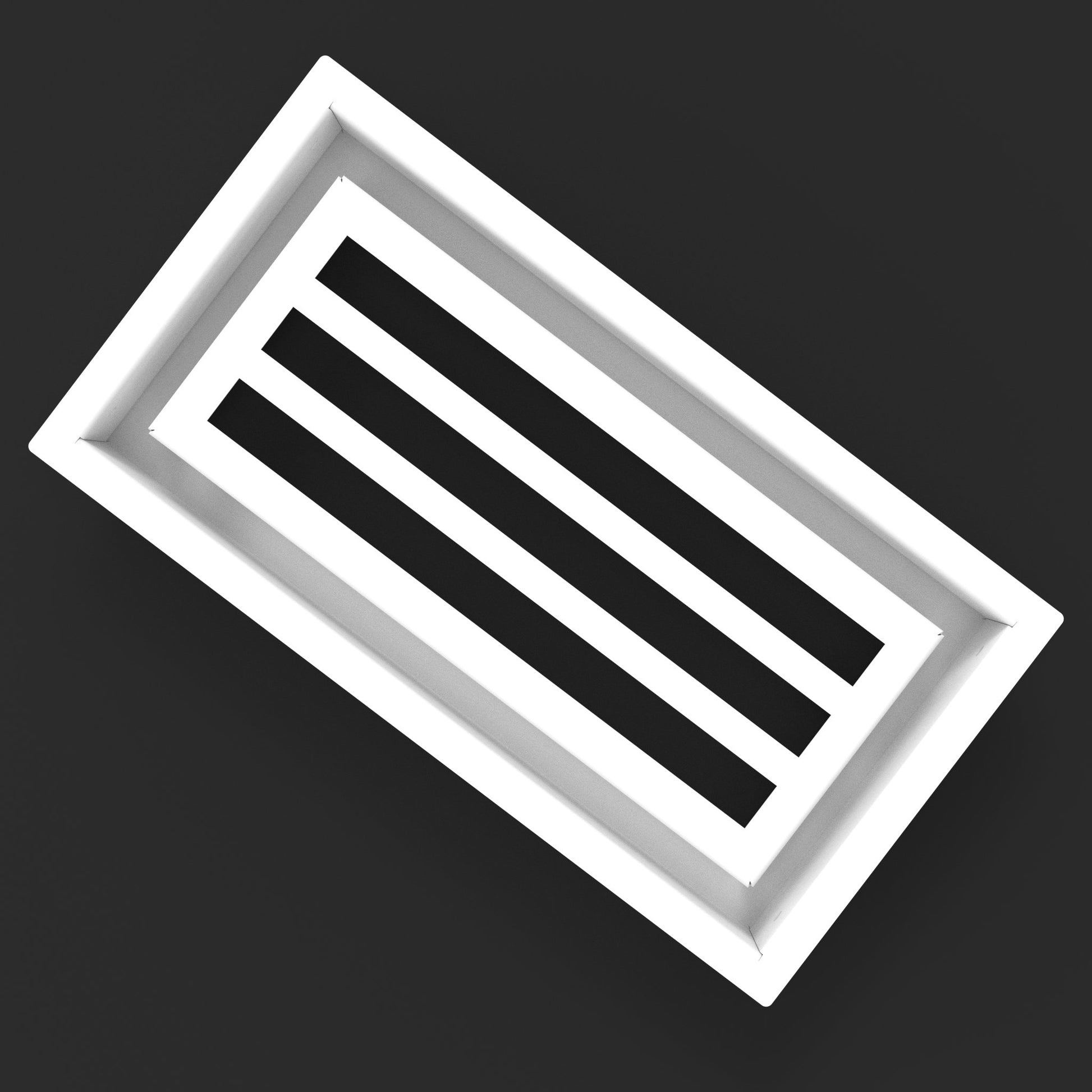

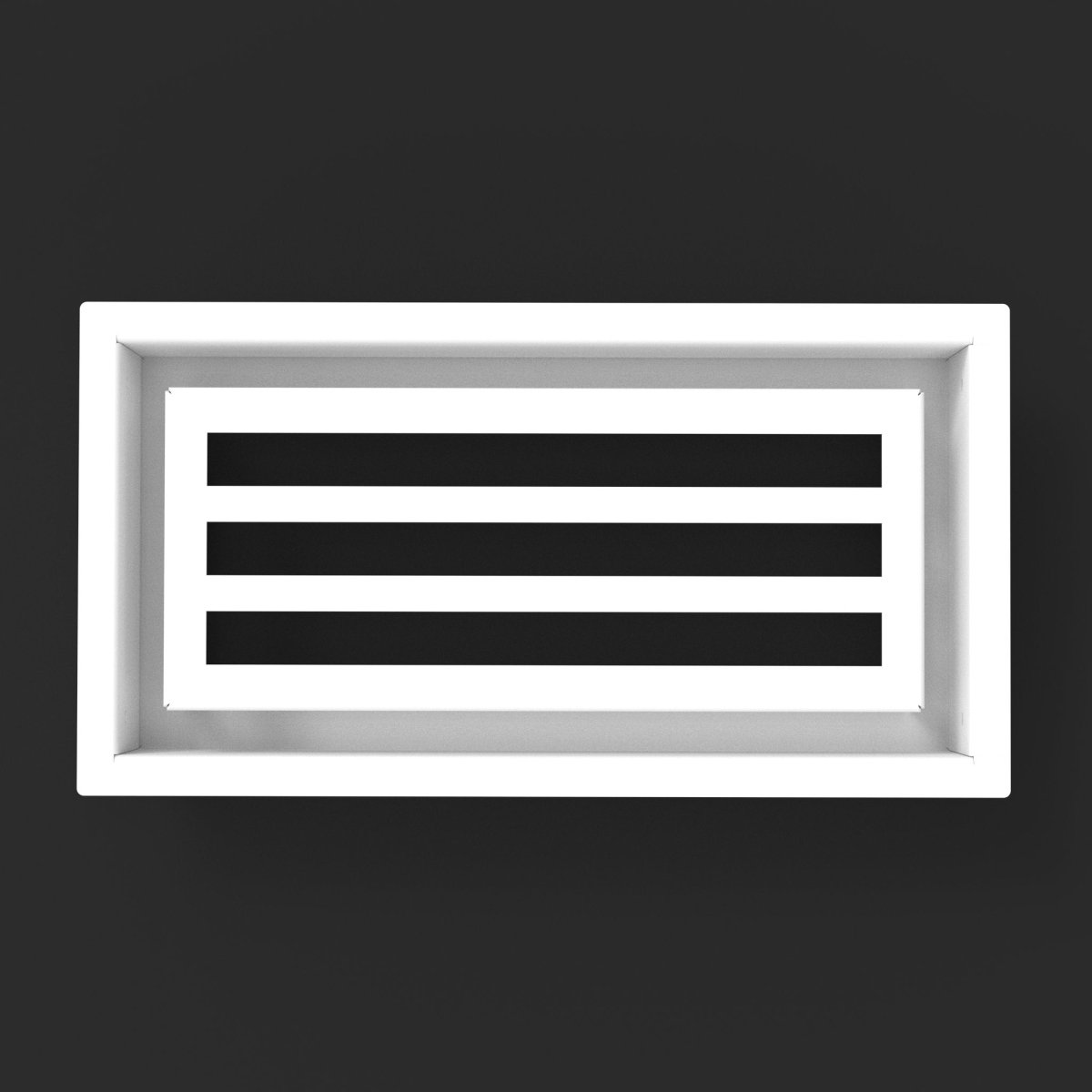

Meet the Intense-Air. A high-capacity linear bar wall grille built to move maximum air through a 6" x 12" opening. Three wide steel bars plus a full perimeter slot deliver far more airflow than a standard louvered or plastic grille, while keeping a clean, modern flush-mount face.
Key Features:
Material: 1.2mm (18 ga) Cold Rolled Steel
Finish: Scratch-Resistant Powder Coating
Duct Size: Fits standard 6" x 12" wall openings
Application: Supply Air or Return Air (Wall only)
Intense-Air Face: Three linear bars plus a full perimeter slot, 58% open area for high air delivery.
Maximum Airflow: Over 70% more net free area than our standard 6x12 grille, so it moves far more air at the same static pressure.

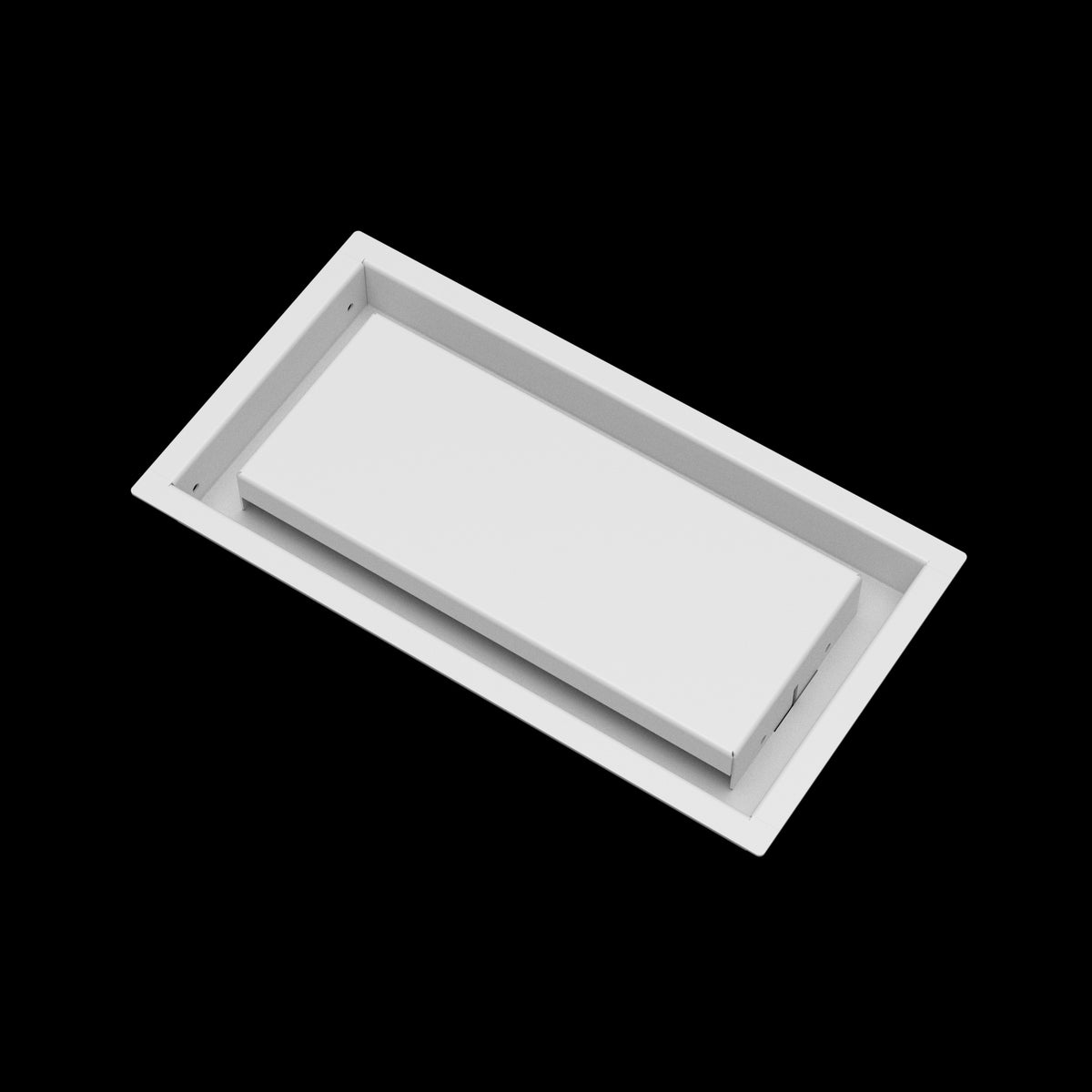

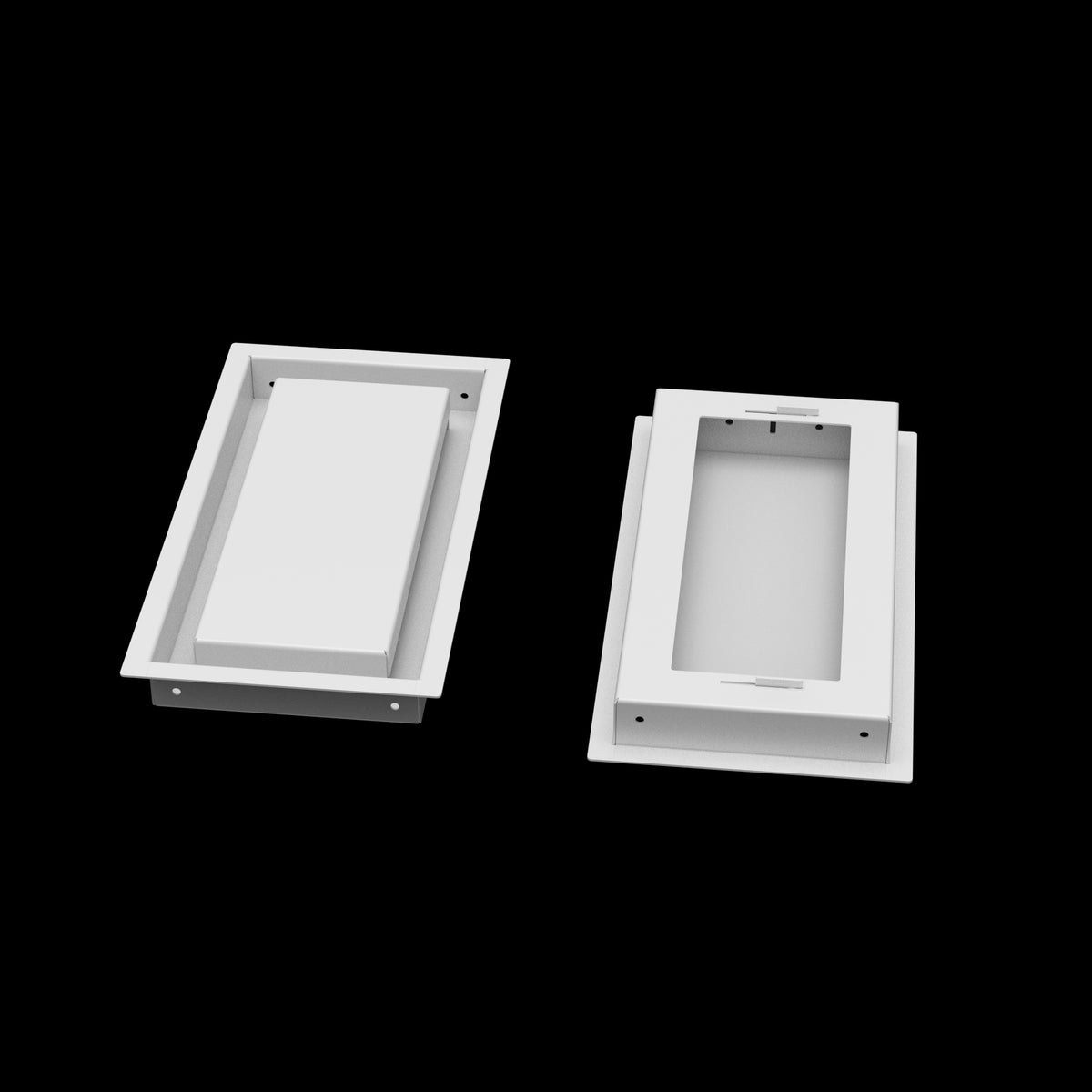

Hidden-Screw 2-Part Design: Flush-mount steel grille with no visible fasteners for a seamless look.
Paint-Ready Matte Finish: Comes in powder-coated Matte White, ready to match any interior.
Ships from Canada - Fast Delivery
Guaranteed to fit your 6x12 duct or your money back
Airflow Performance Data (6 x 12 Intense-Air)
Conservative engineering values.
Net free area 41.8 sq in • Area factor Ak 0.290 sq ft • Open area 58% of nominal
| Face Velocity (fpm) | Airflow (CFM) | Static Pressure (in. wg) | Throw 150 / 100 / 50 fpm (ft) |
|---|---|---|---|
| 400 | 116 | 0.01 | 4 / 8 / 14 |
| 600 | 174 | 0.03 | 7 / 11 / 21 |
| 800 | 232 | 0.06 | 8 / 14 / 28 |
| 1000 | 290 | 0.09 | 11 / 18 / 36 |
| 1200 | 348 | 0.13 | 12 / 22 / 42 |
| 1400 | 406 | 0.18 | 14 / 25 / 50 |
| 1600 | 464 | 0.24 | 16 / 29 / 57 |
Notes and Conditions
- Performance values are engineering calculations and estimates and are not yet laboratory certified. Certified ratings tested to ASHRAE 70-2006 and ADC 1062 will supersede this data once testing is complete.
- Airflow (CFM) is derived by continuity from the rated net free area at standard air density of 0.075 lb per cubic foot under isothermal conditions.
- The net free area is the sum of the three bar openings and the perimeter slot. Actual delivered airflow meets or exceeds the listed values.
- Static pressure is a conservative calculated estimate referenced to the free-area velocity and carries an added margin. Tested values are expected to be lower.
- Throw values are estimates scaled to this product and are pending TRM ASHRAE 70 certification.
- Sound rating data is pending laboratory test.
- Dimensions are nominal and subject to manufacturing tolerance. Consult TRM Metal Products for applications beyond the conditions shown.
Disclaimer
This information is provided for general information only and is subject to change without notice. The values shown are preliminary engineering estimates, are not laboratory certified, and must not be used for code compliance, regulatory submission, or life safety system design until certified ratings are issued. Selection of the product and verification of its suitability for a given application are the responsibility of the system designer and purchaser. Installed performance varies with duct design, system static pressure, installation quality, and field conditions, all of which are outside the control of TRM Metal Products. To the fullest extent permitted by law, this data is provided as is, without warranty of any kind, express or implied, including any implied warranty of merchantability or fitness for a particular purpose, and TRM Metal Products assumes no liability for any loss, cost, or damage arising from its use or from reliance on it. All product names and trademarks are the property of their respective owners. TRM Metal Products is not responsible for typographical errors.
