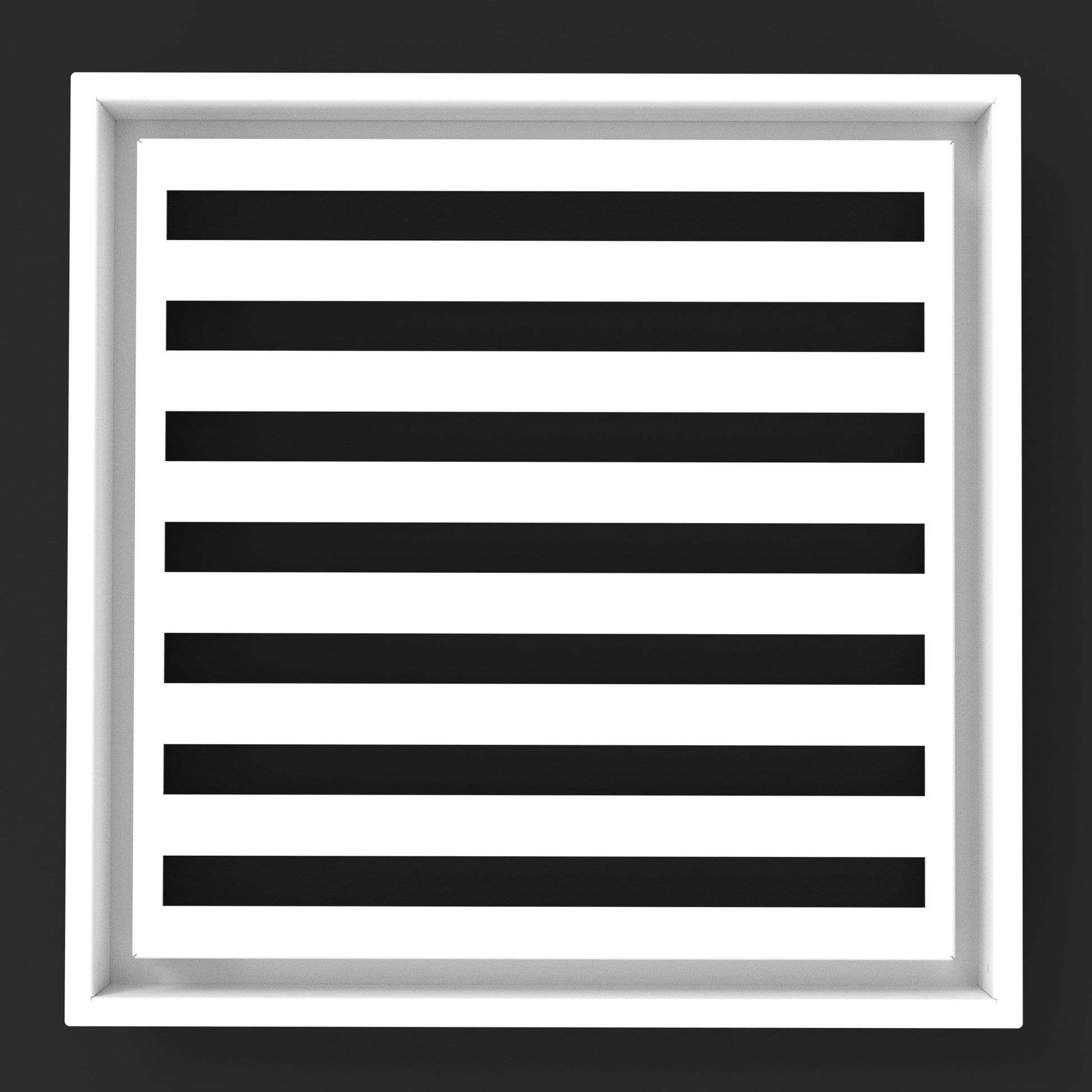

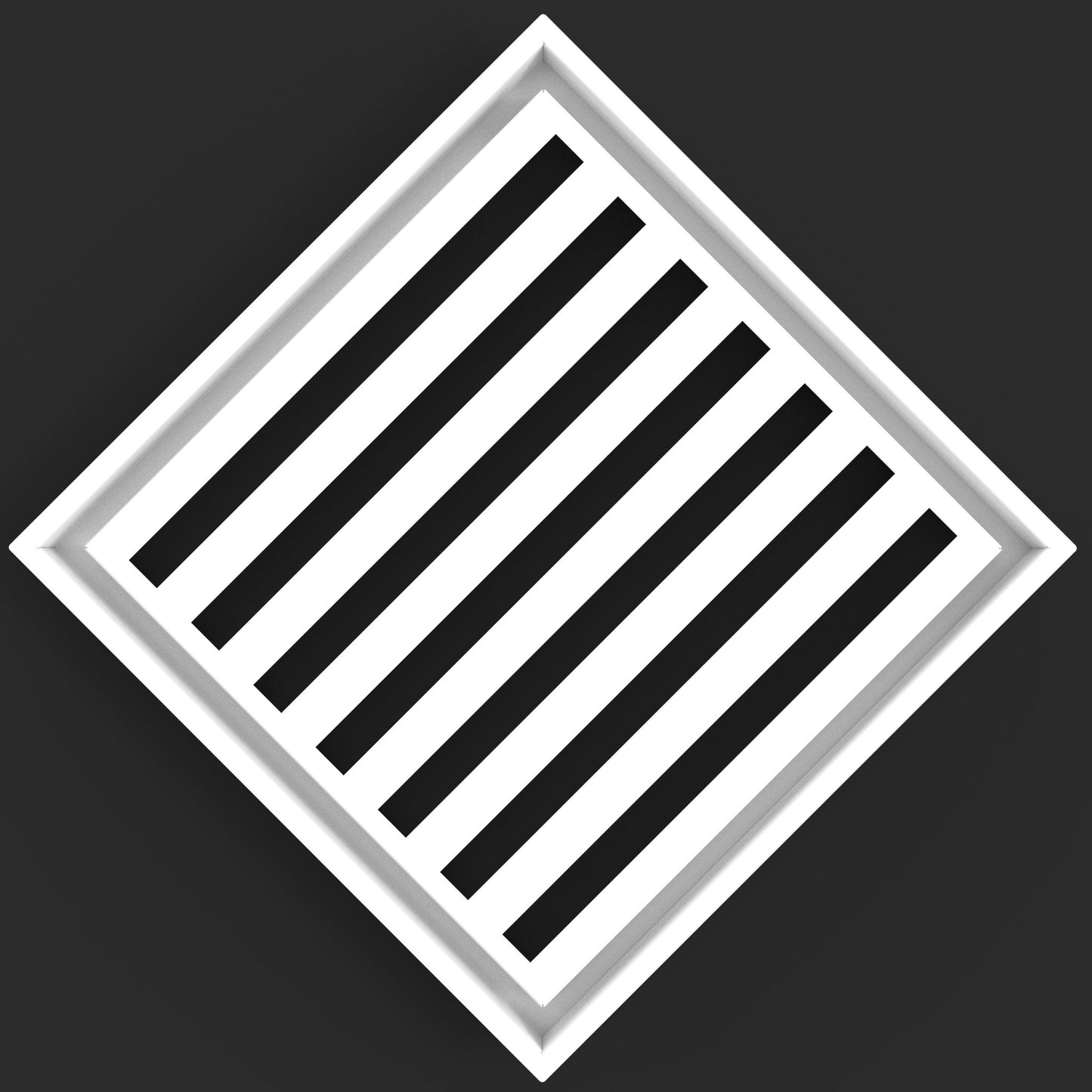

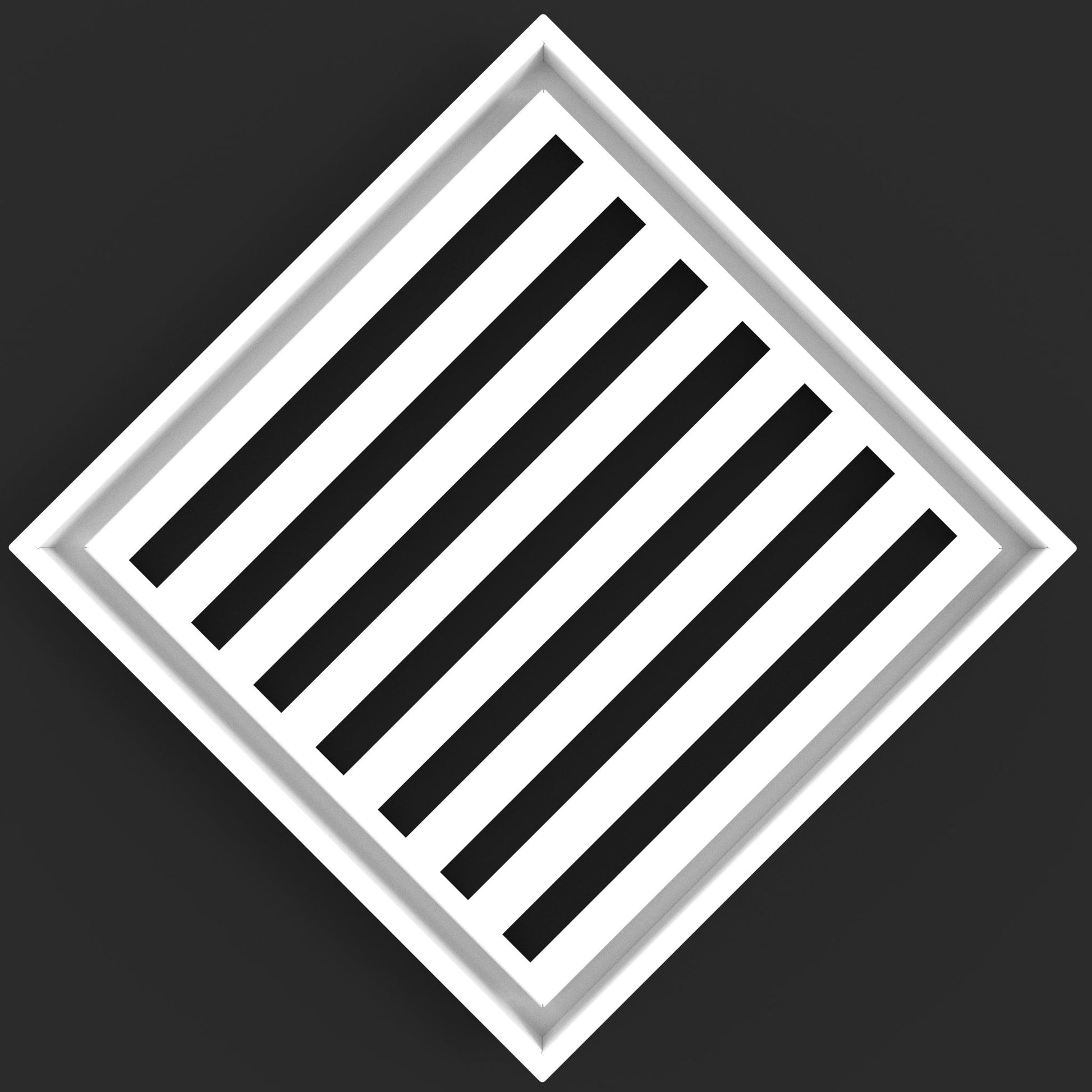

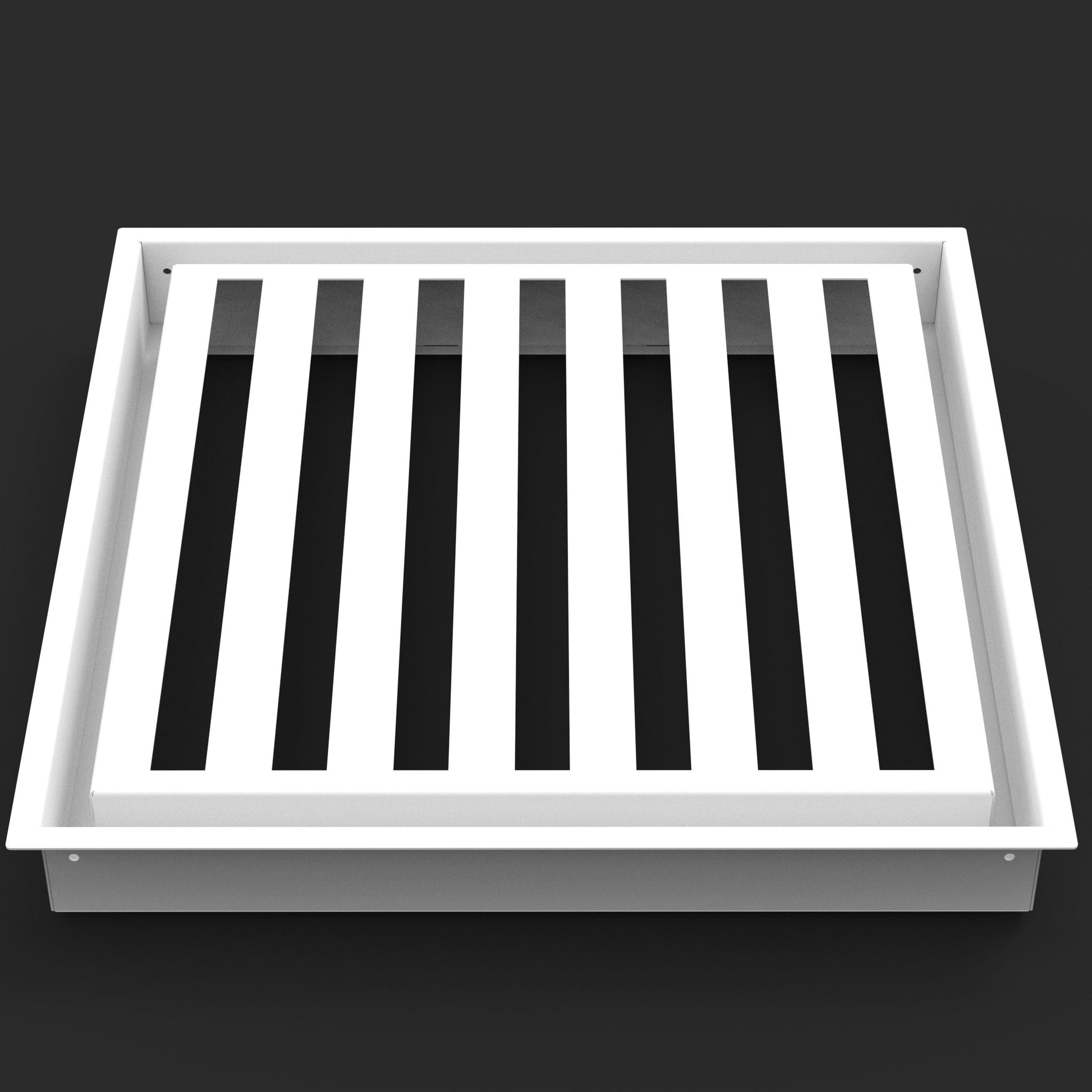

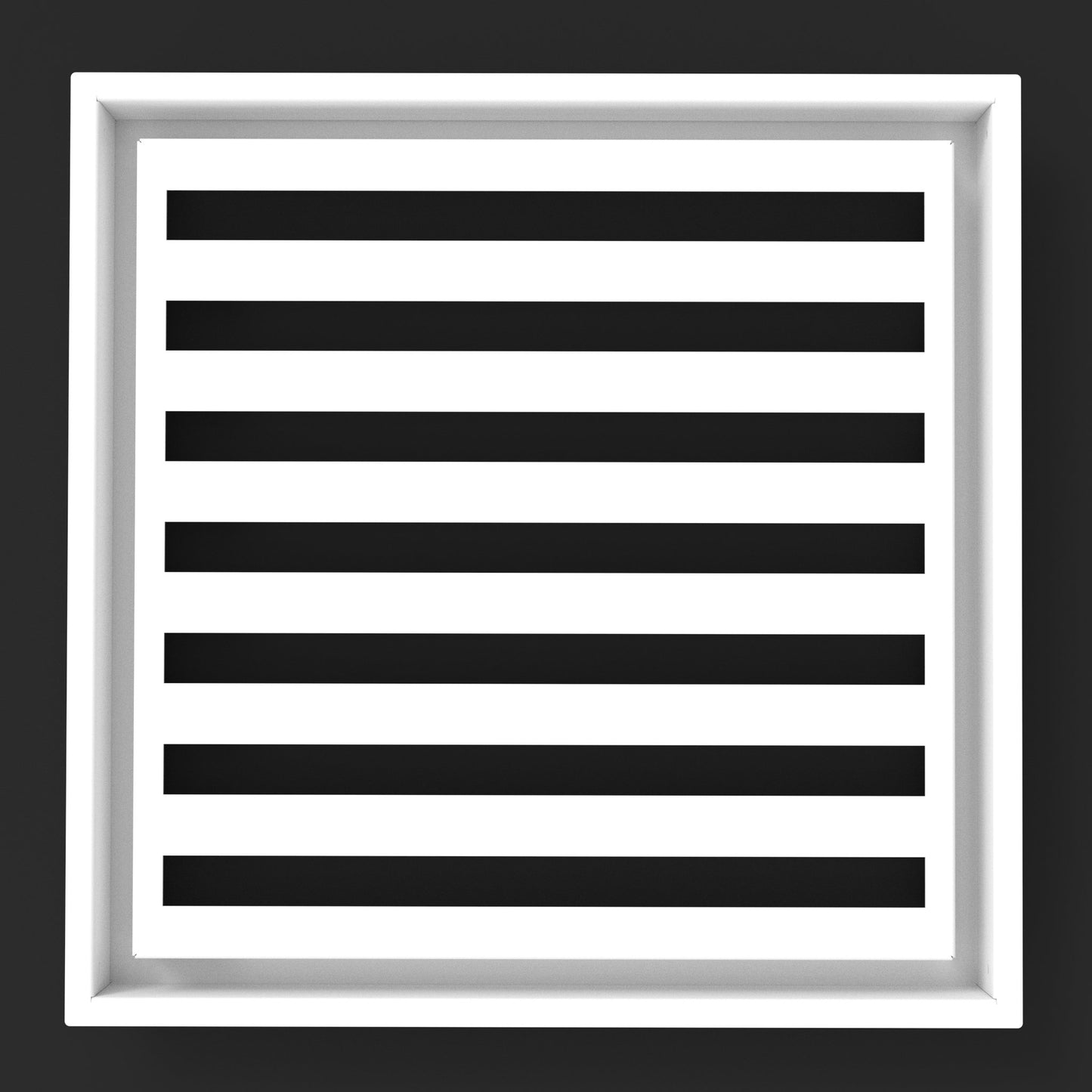

18x18 Intense-Air Wall Vent Cover - High-Airflow Linear Bar Steel Grille
18x18 Intense-Air Wall Vent Cover - High-Airflow Linear Bar Steel Grille
Estimated delivery : Wednesday, 02 September - Thursday, 10 September.
Need a size we don't stock? Order any custom size wall vent →
Couldn't load pickup availability
Meet the Intense-Air. A high-capacity linear bar wall grille built to move maximum air through an 18" x 18" opening. Seven wide steel bars plus a full perimeter slot deliver far more airflow than a standard louvered or plastic grille, while keeping a clean, modern flush-mount face.
Key Features:
Material: 1.2mm (18 ga) Cold Rolled Steel
Finish: Scratch-Resistant Powder Coating
Duct Size: Fits standard 18" x 18" wall openings
Application: Supply Air or Return Air (Wall only)
Intense-Air Face: Seven linear bars plus a full perimeter slot, 48% open area for high air delivery.
Maximum Airflow: About 3x the net free area of our standard 18x18 grille, so it moves far more air at the same static pressure.
Hidden-Screw 2-Part Design: Flush-mount steel grille with no visible fasteners for a seamless look.
Paint-Ready Matte Finish: Comes in powder-coated Matte White, ready to match any interior.
Ships from Canada - Fast Delivery
Guaranteed to fit your 18x18 duct or your money back
Airflow Performance Data (18 x 18 Intense-Air)
Conservative engineering values.
Net free area 156.7 sq in • Area factor Ak 1.088 sq ft • Open area 48% of nominal
| Face Velocity (fpm) | Airflow (CFM) | Static Pressure (in. wg) | Throw 150 / 100 / 50 fpm (ft) |
|---|---|---|---|
| 400 | 435 | 0.01 | 8 / 14 / 27 |
| 600 | 653 | 0.03 | 12 / 21 / 41 |
| 800 | 870 | 0.06 | 16 / 28 / 55 |
| 1000 | 1088 | 0.09 | 20 / 35 / 69 |
| 1200 | 1305 | 0.13 | 24 / 42 / 82 |
| 1400 | 1523 | 0.18 | 28 / 50 / 96 |
| 1600 | 1741 | 0.24 | 32 / 57 / 110 |
The net free area is the sum of the seven bar openings and the perimeter slot. Actual delivered airflow meets or exceeds the listed values.
Values are preliminary engineering estimates and are not laboratory certified. See Performance Data Terms for the full notes, conditions and disclaimer.
