Connect Fence Panels to Posts with a Clean Offset Joint

Our Z Brackets solve the awkward offset connection between a fence panel and a pergola or fence post. The Z profile steps around the post face, letting you fasten the panel frame flush without shimming, notching, or improvised blocking. Proudly made in Canada by TRM Metal Products.

Built to Last Outdoors

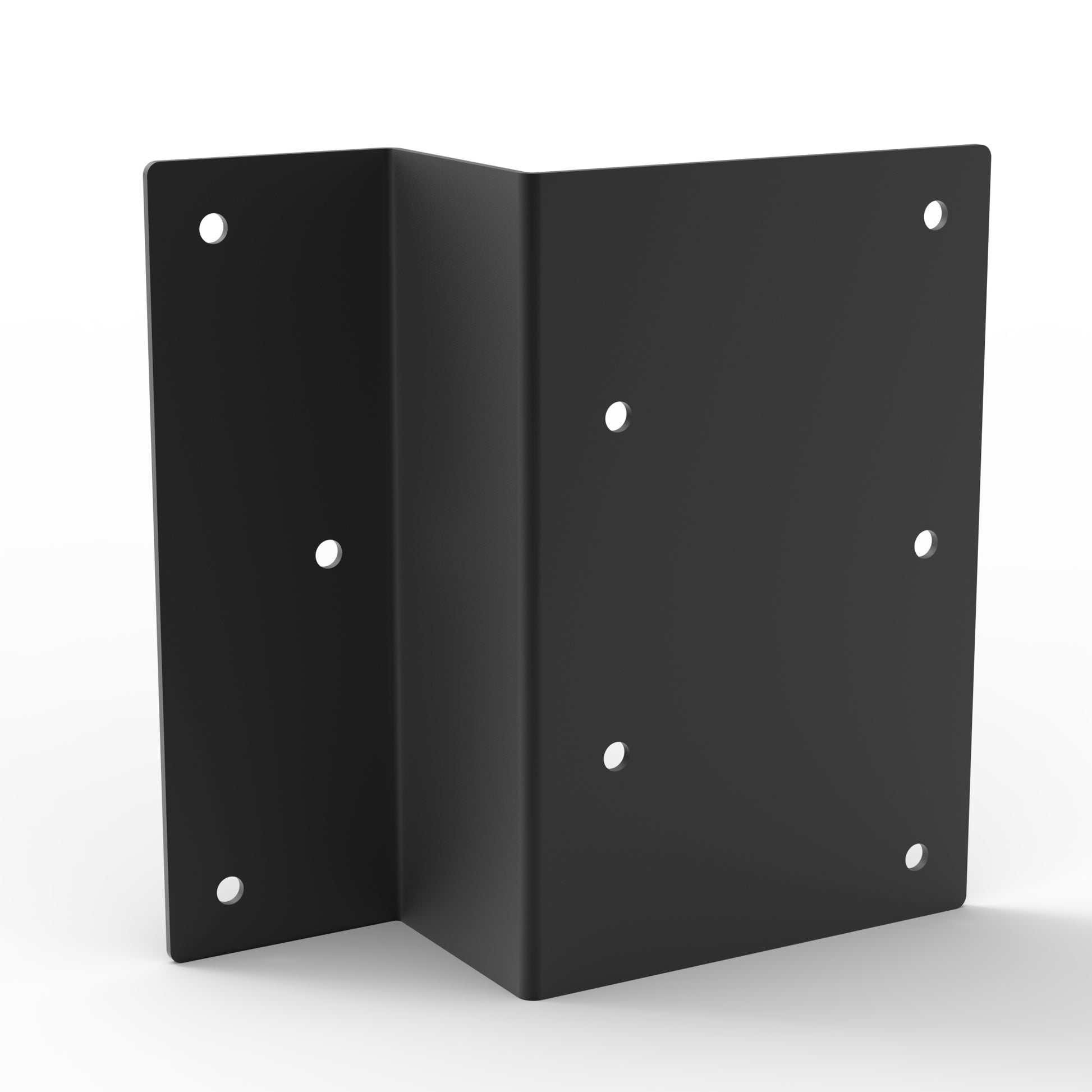

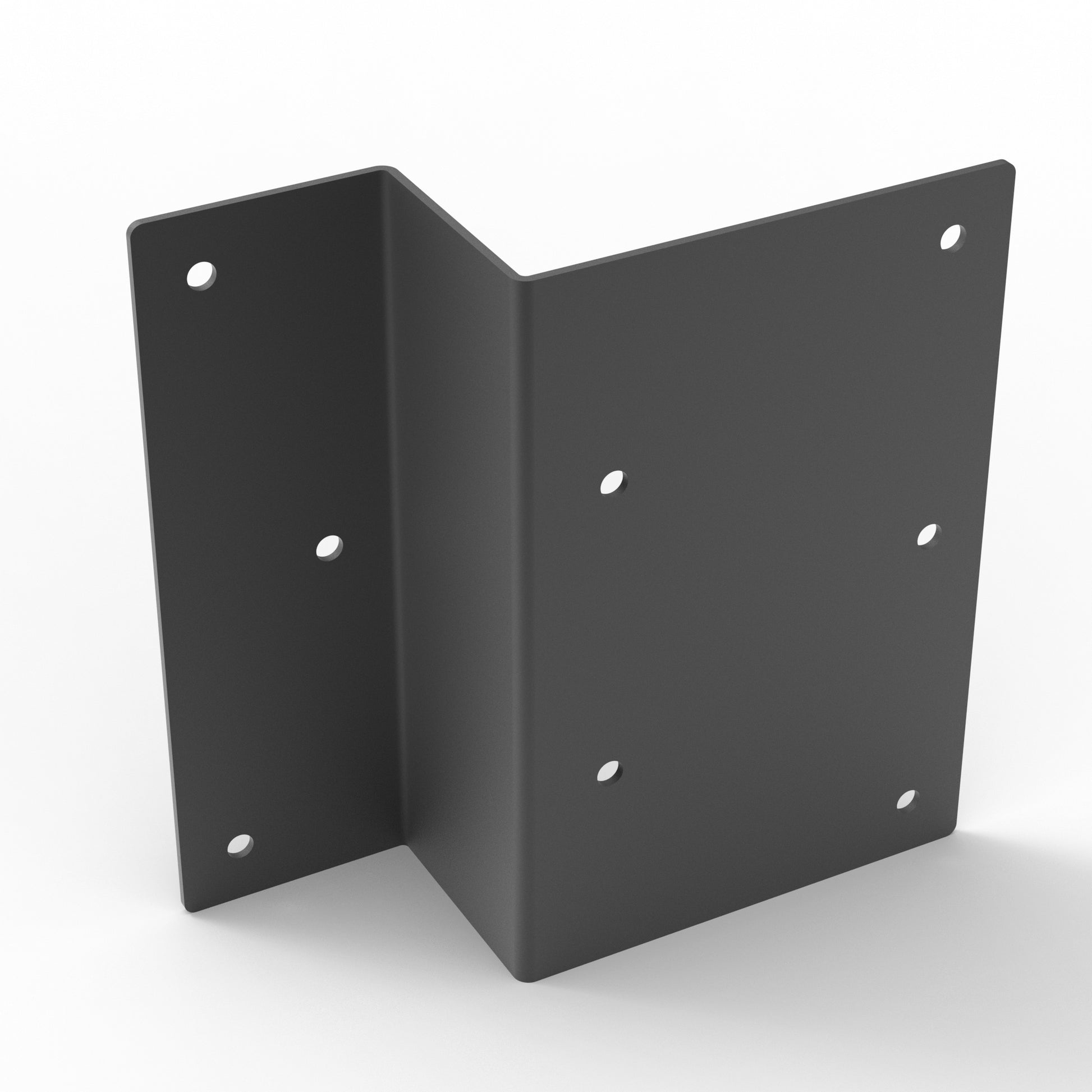

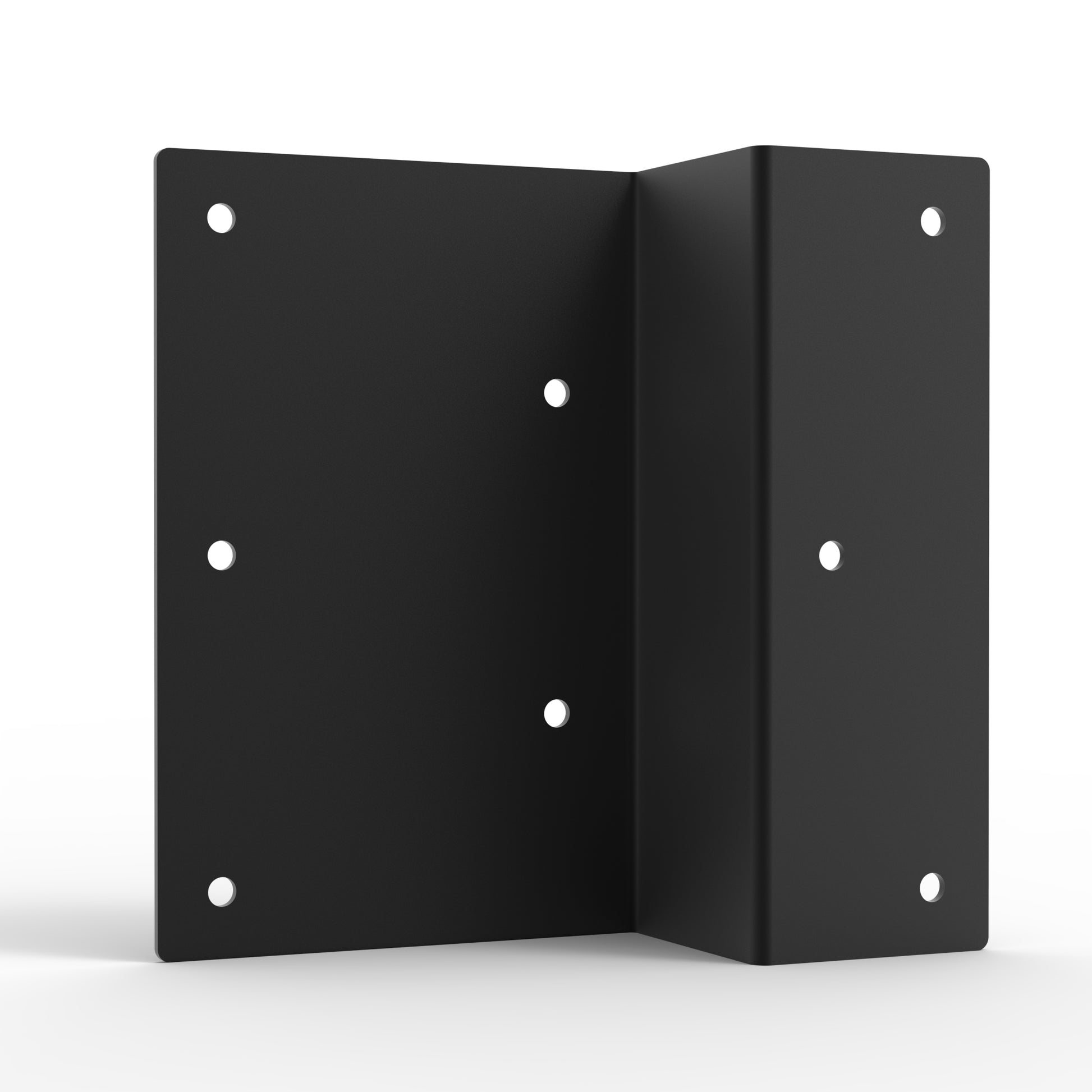

• 14 Gauge Galvanized Steel construction for strength that light-duty hardware store brackets can't match
• Black Powder Coated over the galvanized base for a double layer of rust protection and a clean architectural look

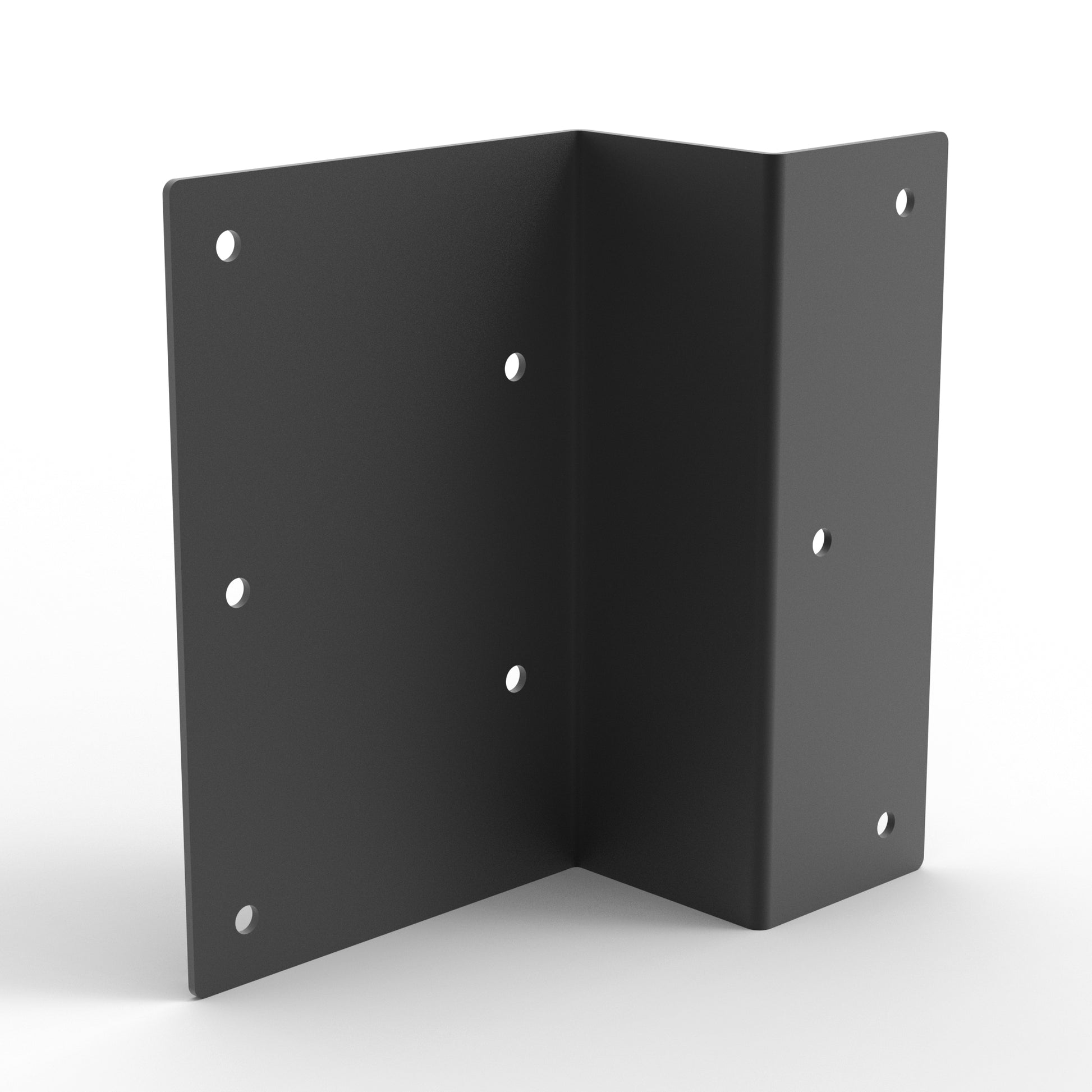

• 8 pre-drilled holes (7/32" dia.) sized for #10 exterior wood screws, spread across both faces for a rigid, rattle-free joint
• Rounded corners and smooth powder coated edges, safe to handle during installation

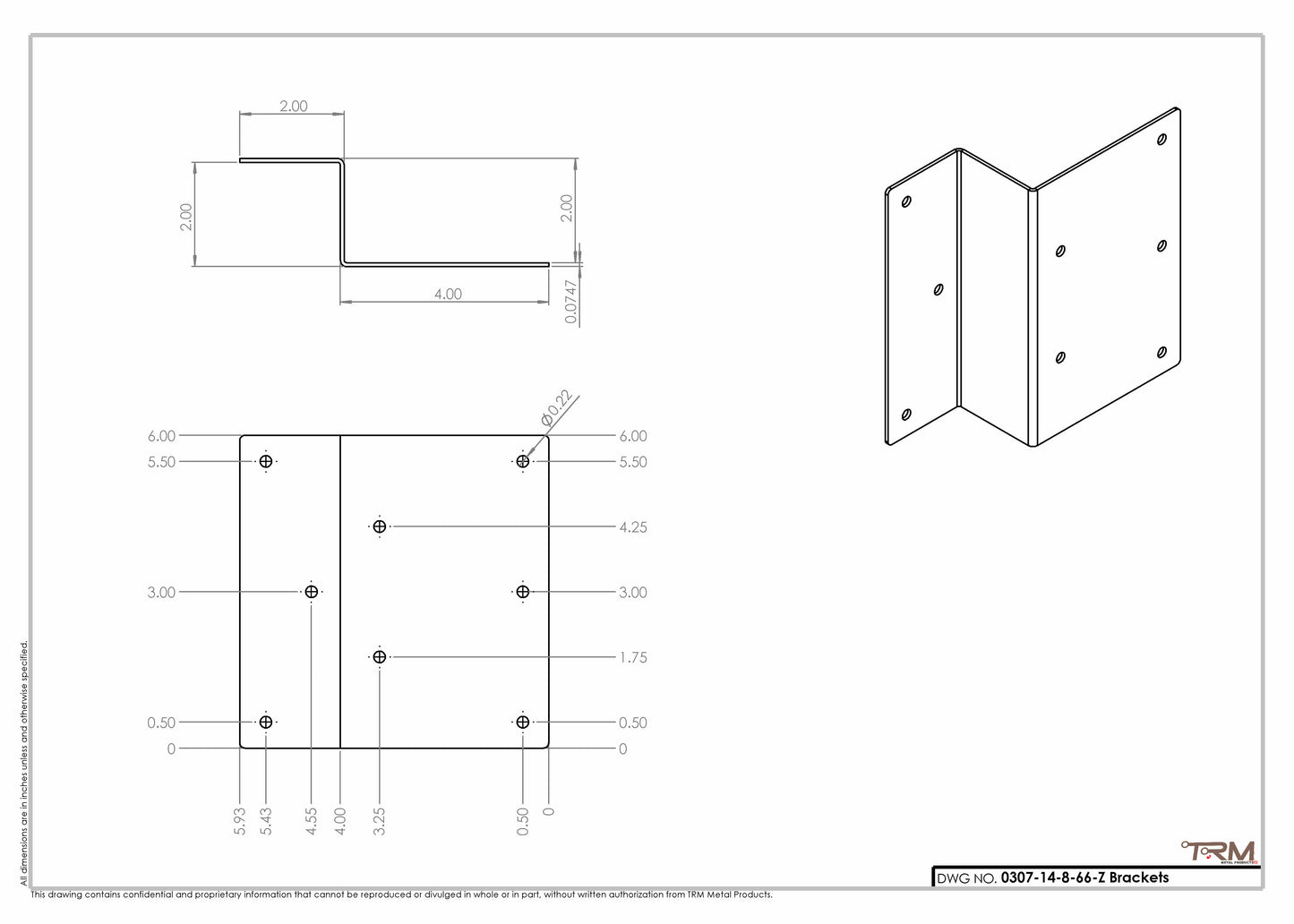

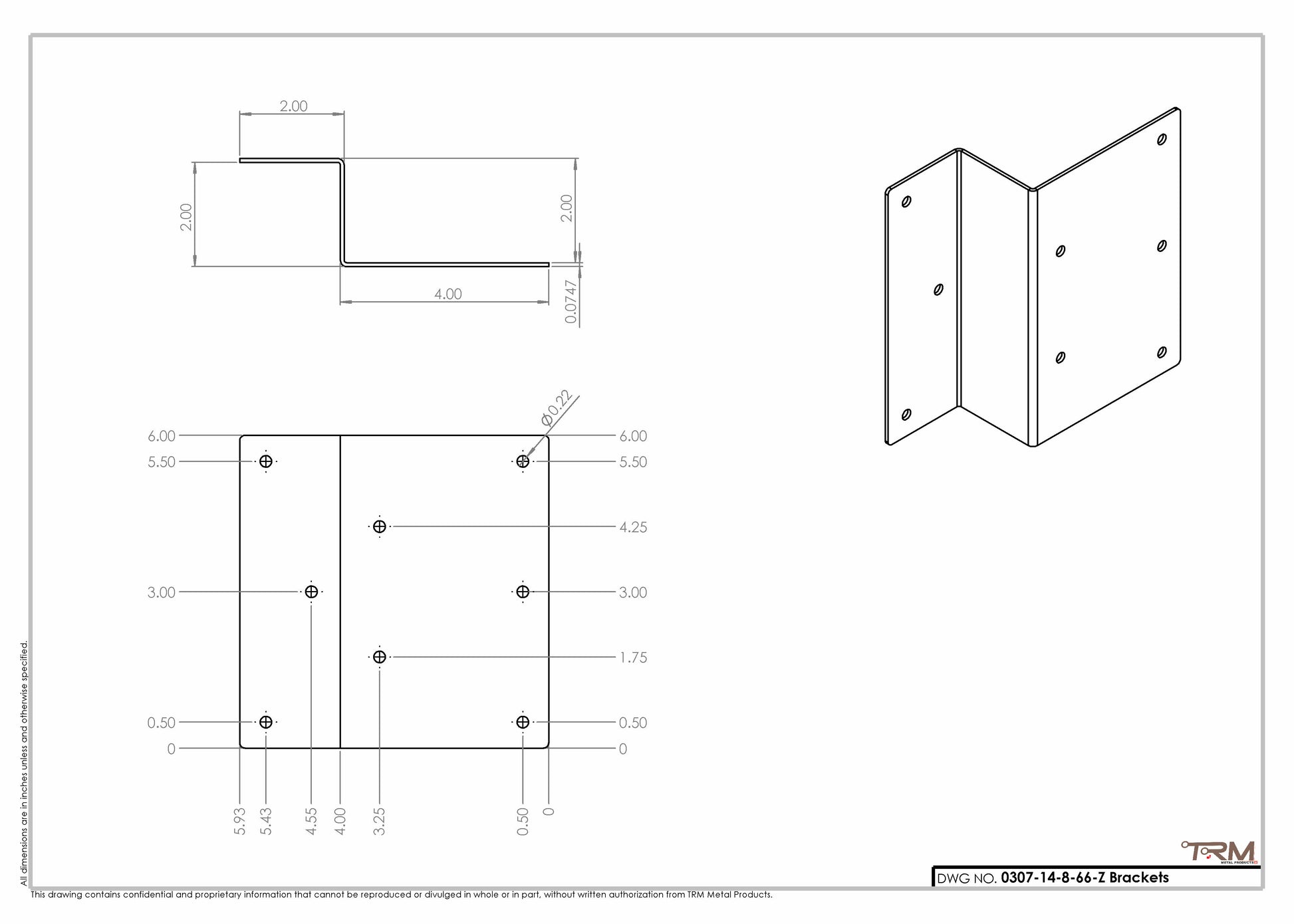

Dimensions

• Height: 6"
• Wide face: 4" | Narrow face: 2" | Offset (step): 2"
• Material thickness: 14 ga (0.075")

Typical Uses

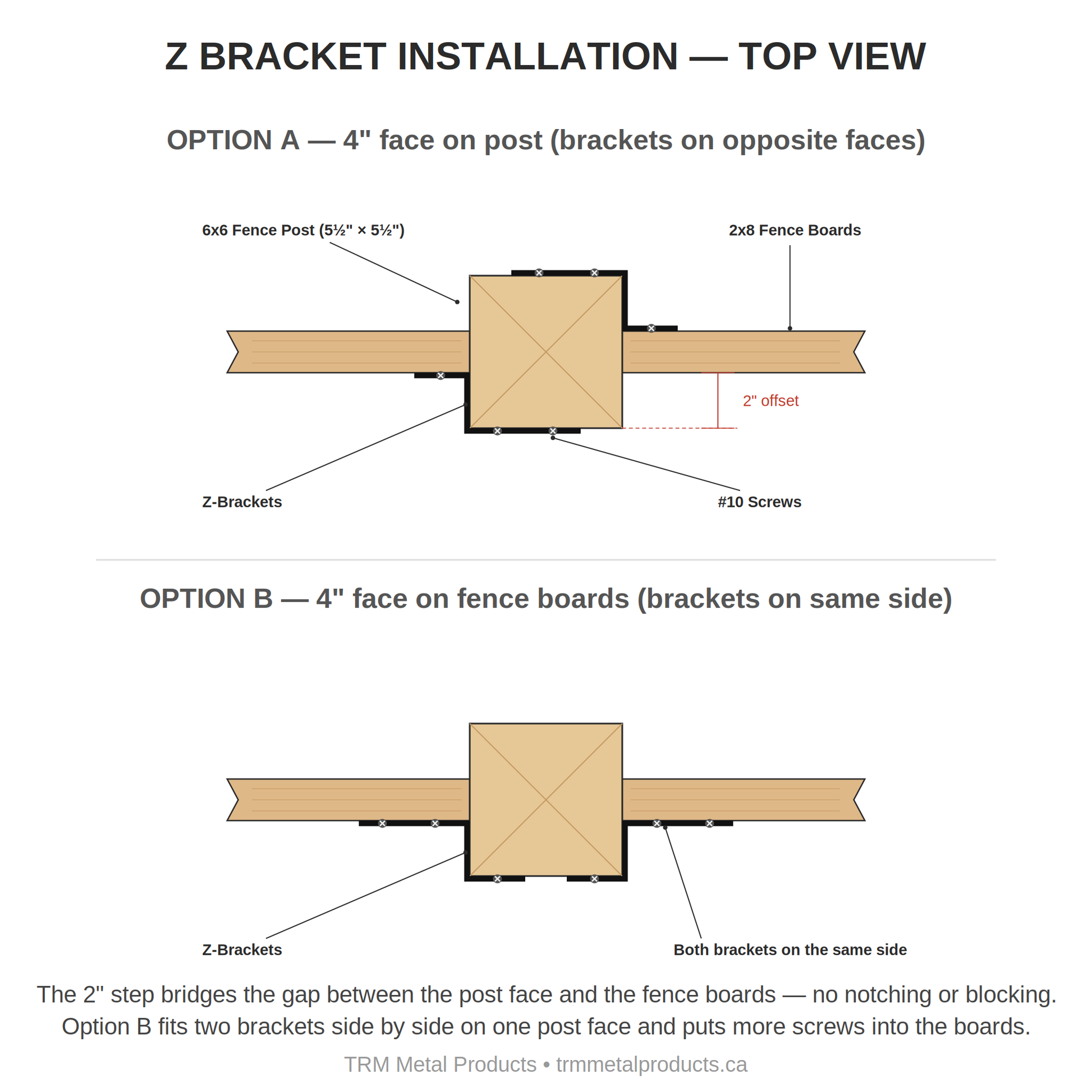

• Mounting fence panels or privacy screens to pergola posts
• Offset post-to-panel and post-to-rail connections
• Stepped joints where two members don't sit in the same plane

What's Included: 4 Z Brackets per pack. Fasteners not included, use #10 exterior-rated wood screws.

Fixing an existing fence instead of building? See our Fence Repair Bracket for reinforcing loose post-to-fence joints.

Designed and manufactured in Mississauga, Ontario. Questions about your application? Contact us, we build these ourselves and can help you spec the right bracket.
