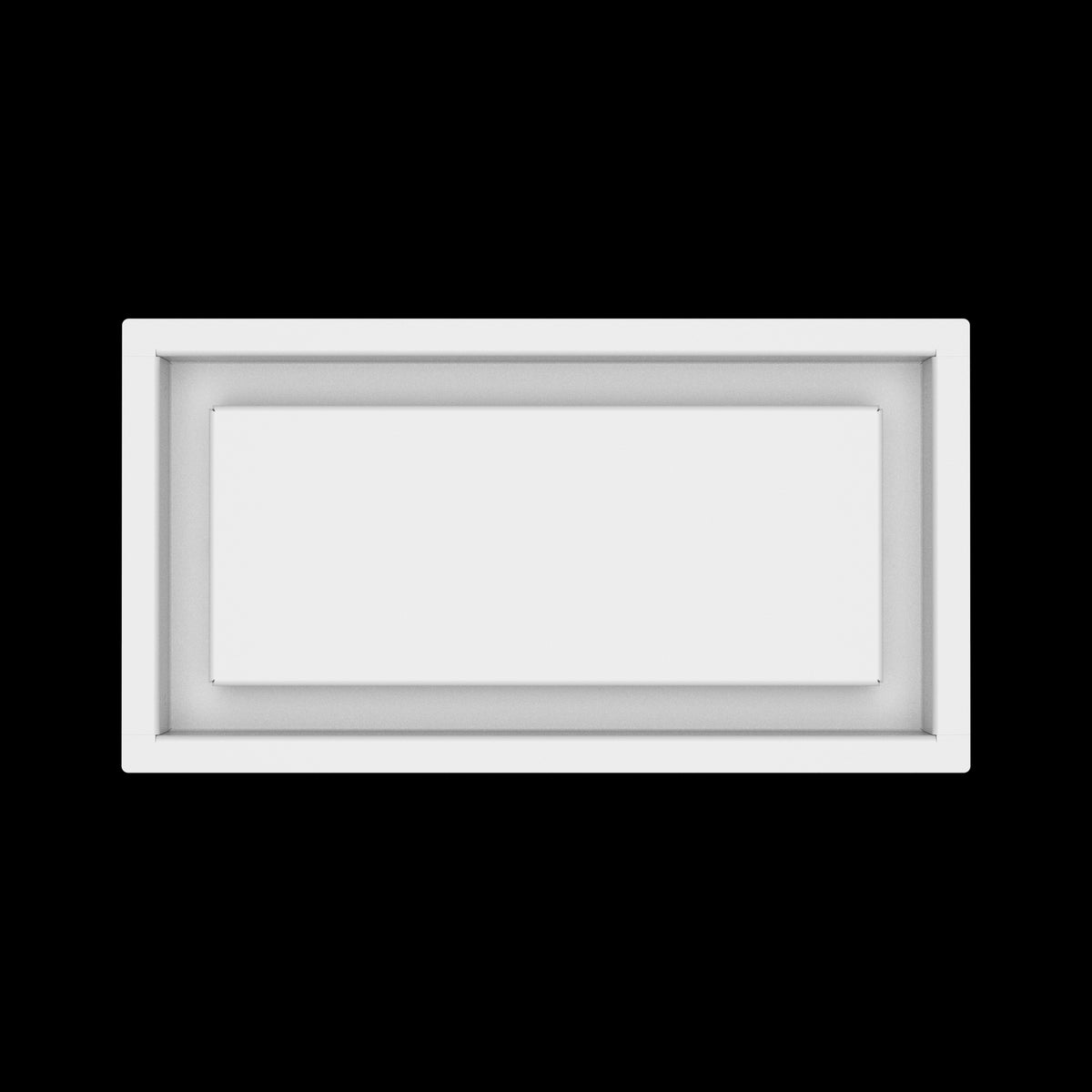

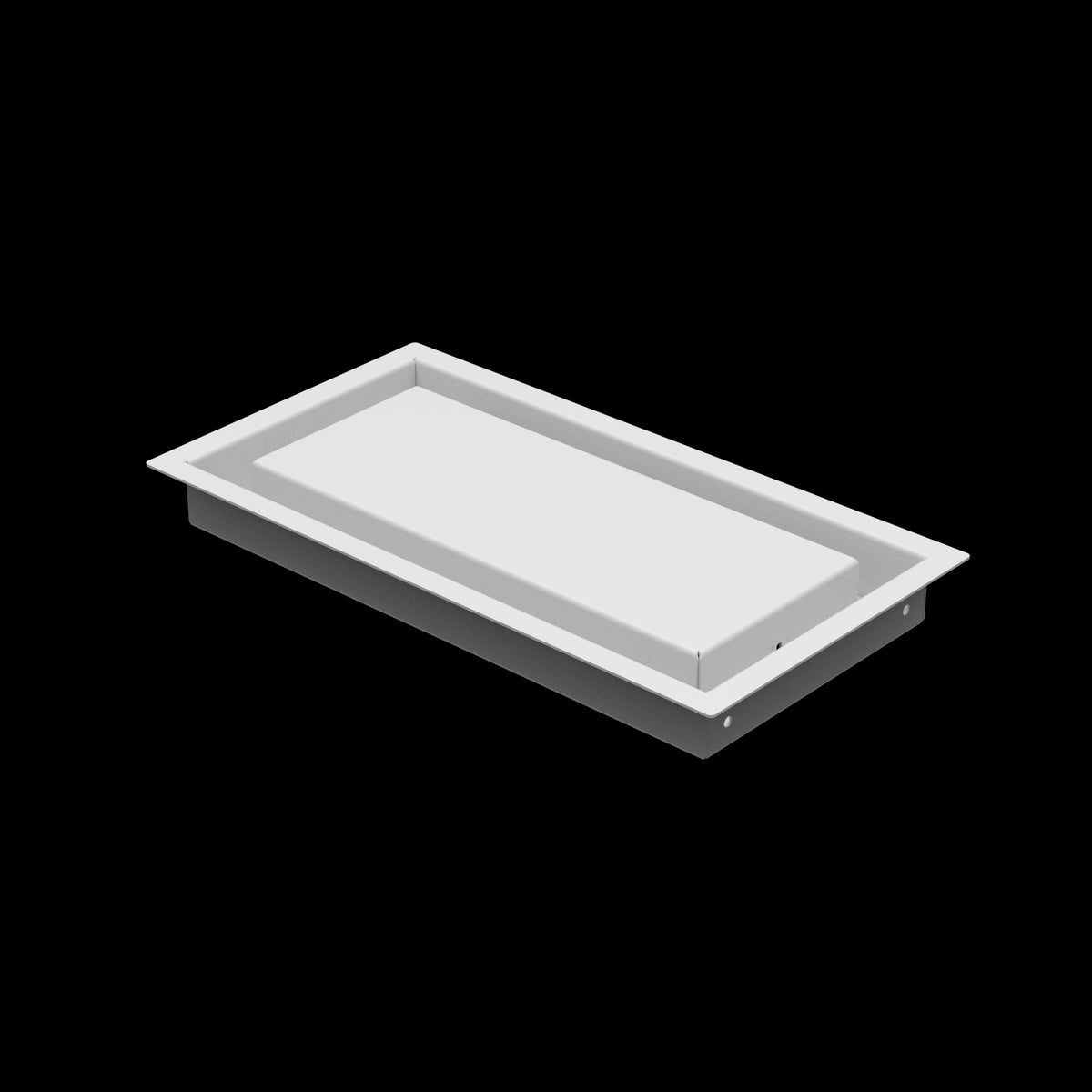

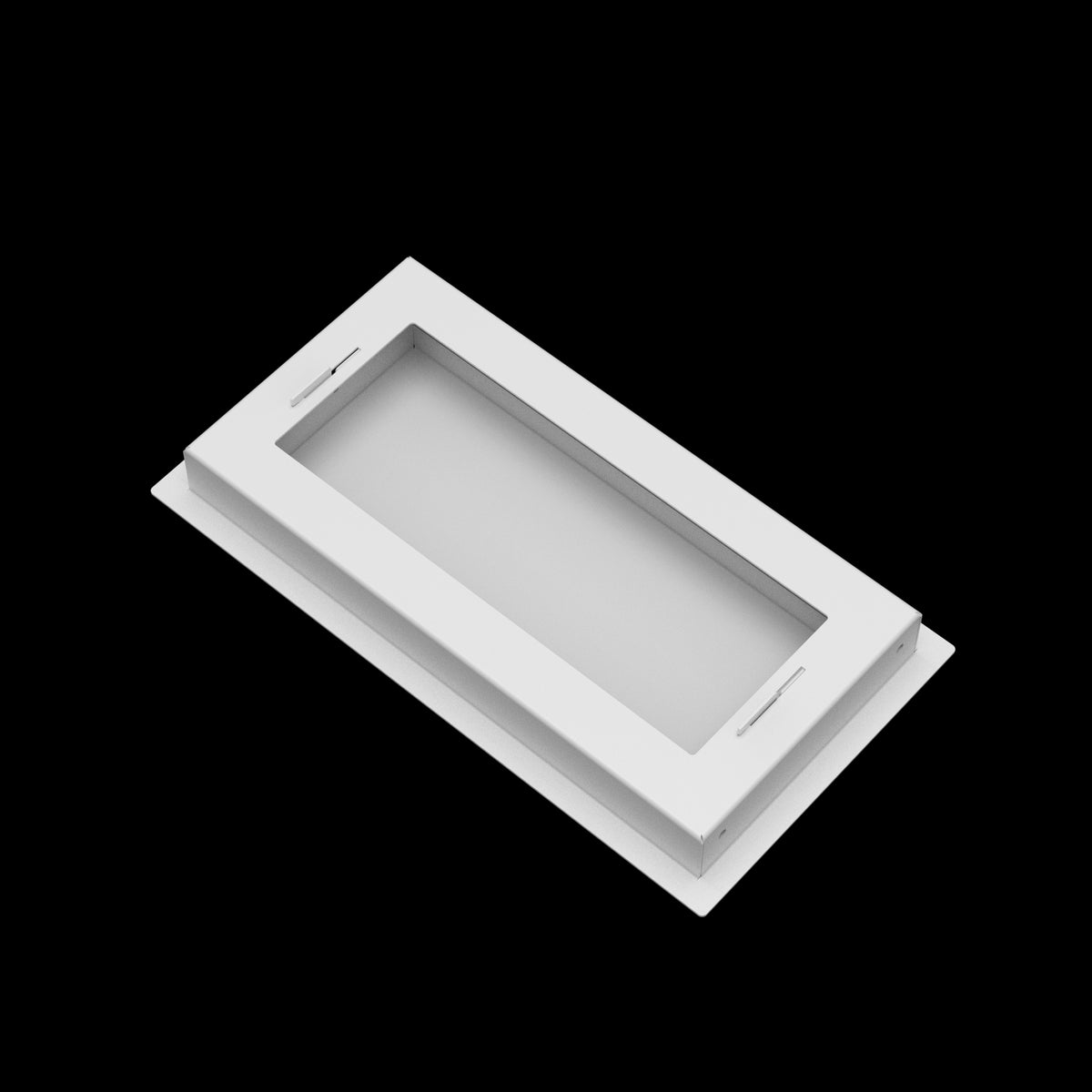

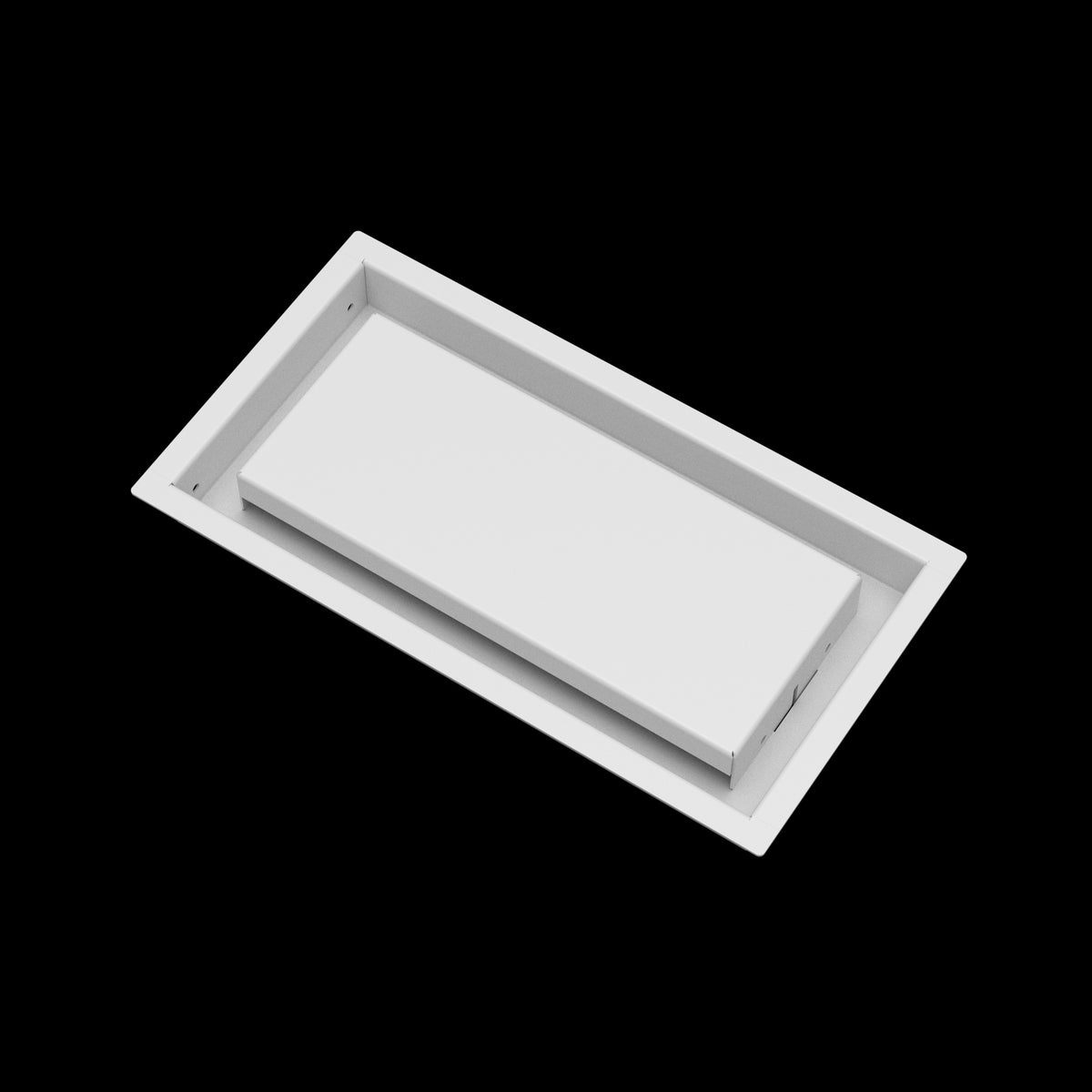

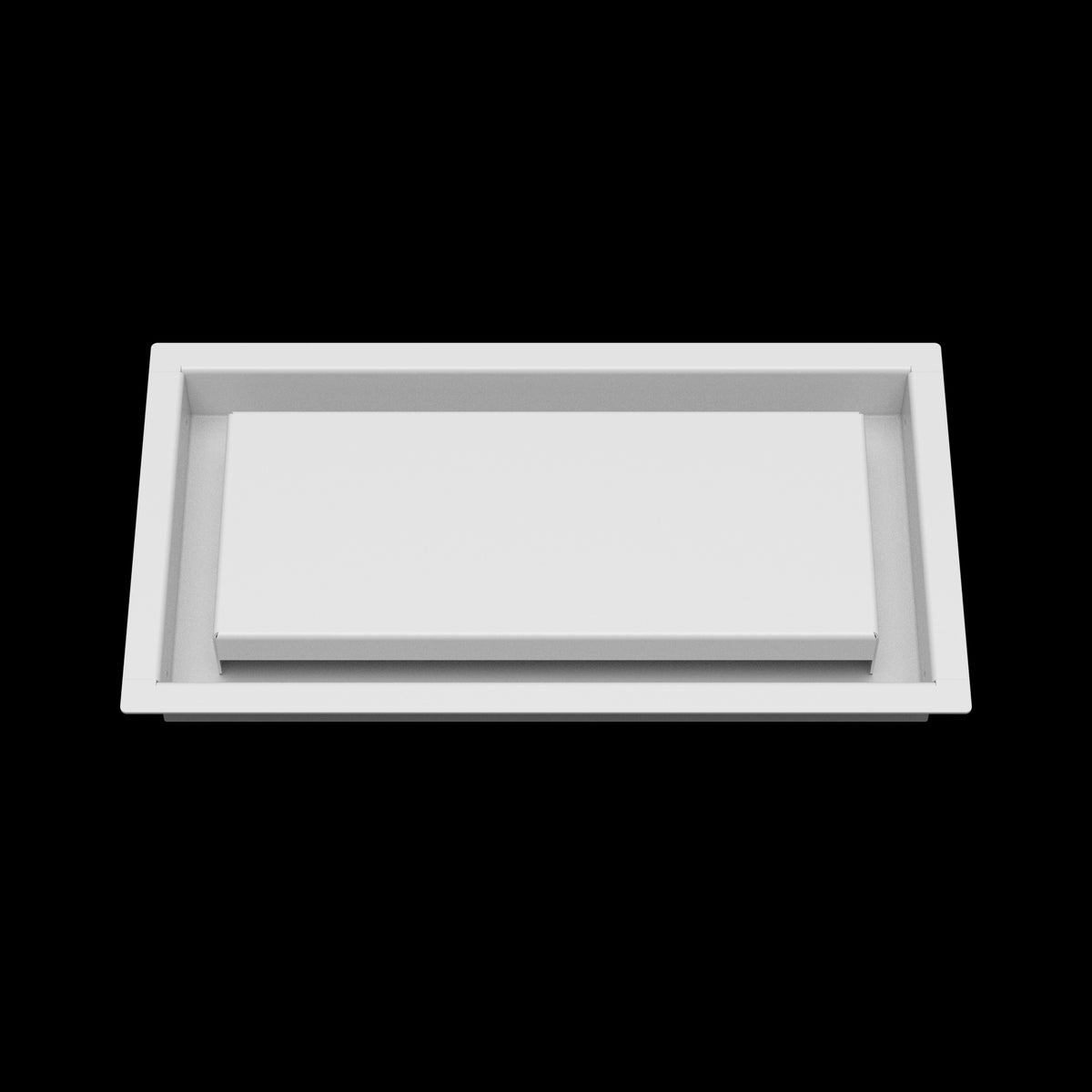

6x12 Modern Wall Vent Cover | Flush Mount Steel Grille
6x12 Modern Wall Vent Cover | Flush Mount Steel Grille
Estimated delivery : Friday, 23 October - Saturday, 31 October.
Need a size we don't stock? Order any custom size wall vent →
Couldn't load pickup availability
Stop settling for standard plastic. Upgrade to our Modern Steel Wall Grille. Designed to replace thin metal or plastic grilles with a premium, flush-mount finish.
Key Features:
-
Material: 1.2mm Heavy-Duty Carbon Steel
-
Finish: Scratch-Resistant Powder Coating
-

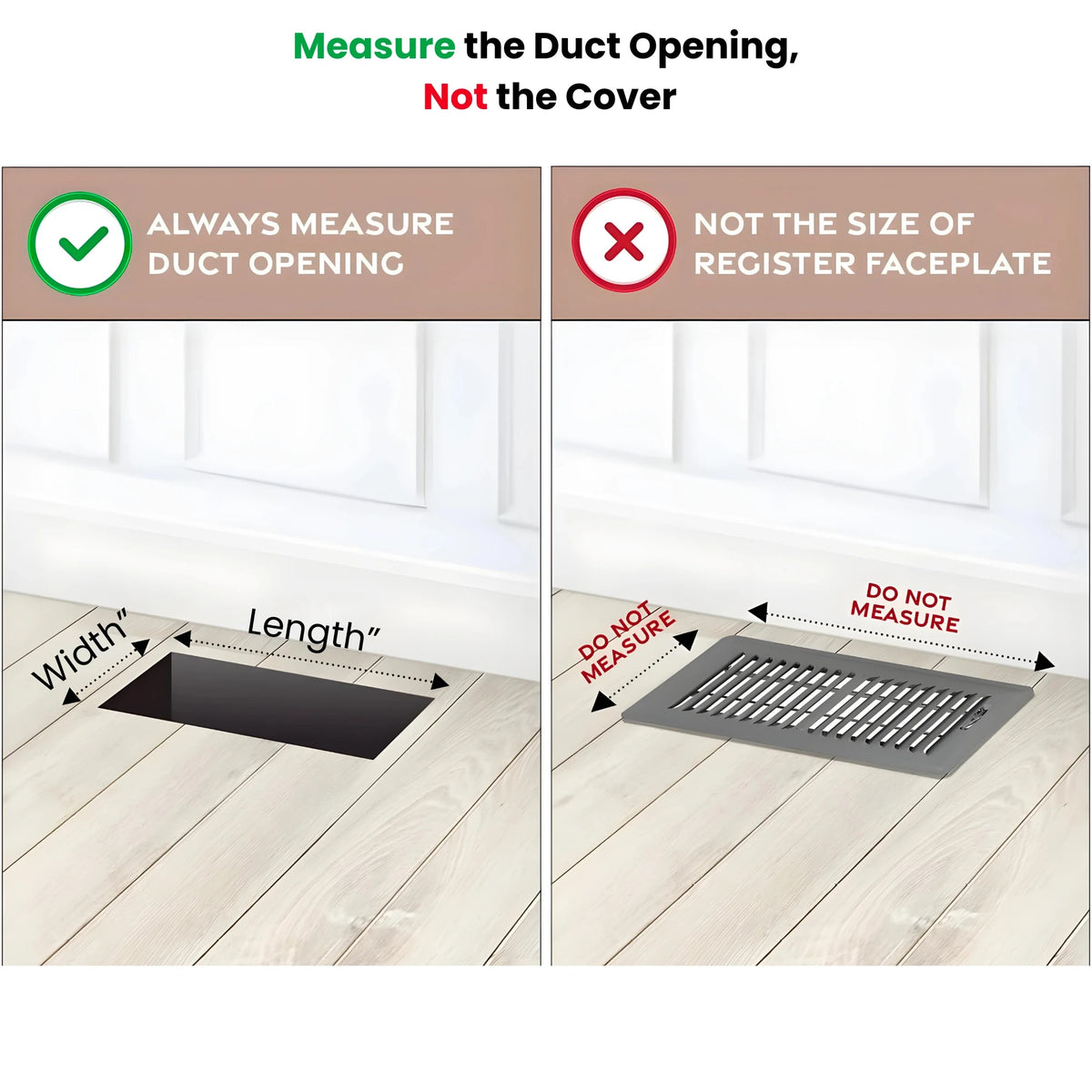

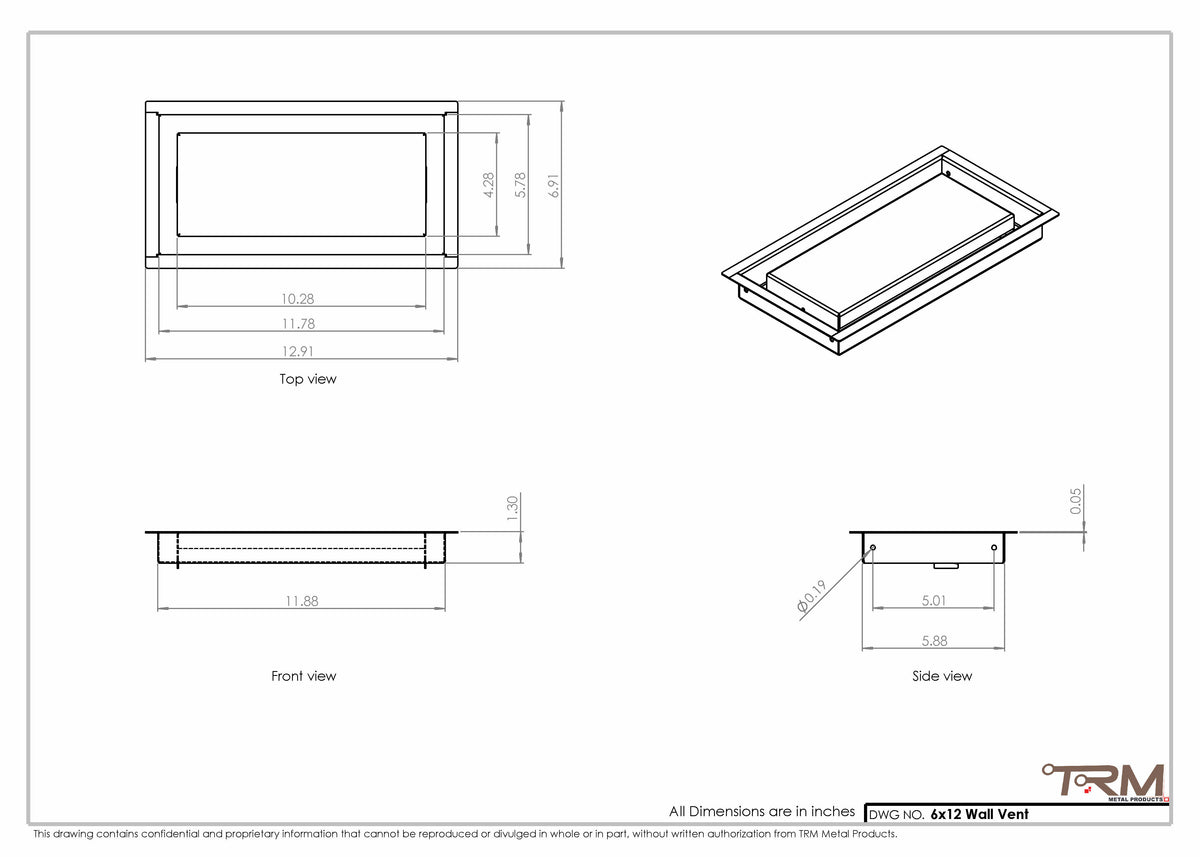

Duct Size: Fits standard 6" x 12" wall openings
-
Application: Supply Air or Return Air (Wall only)
-

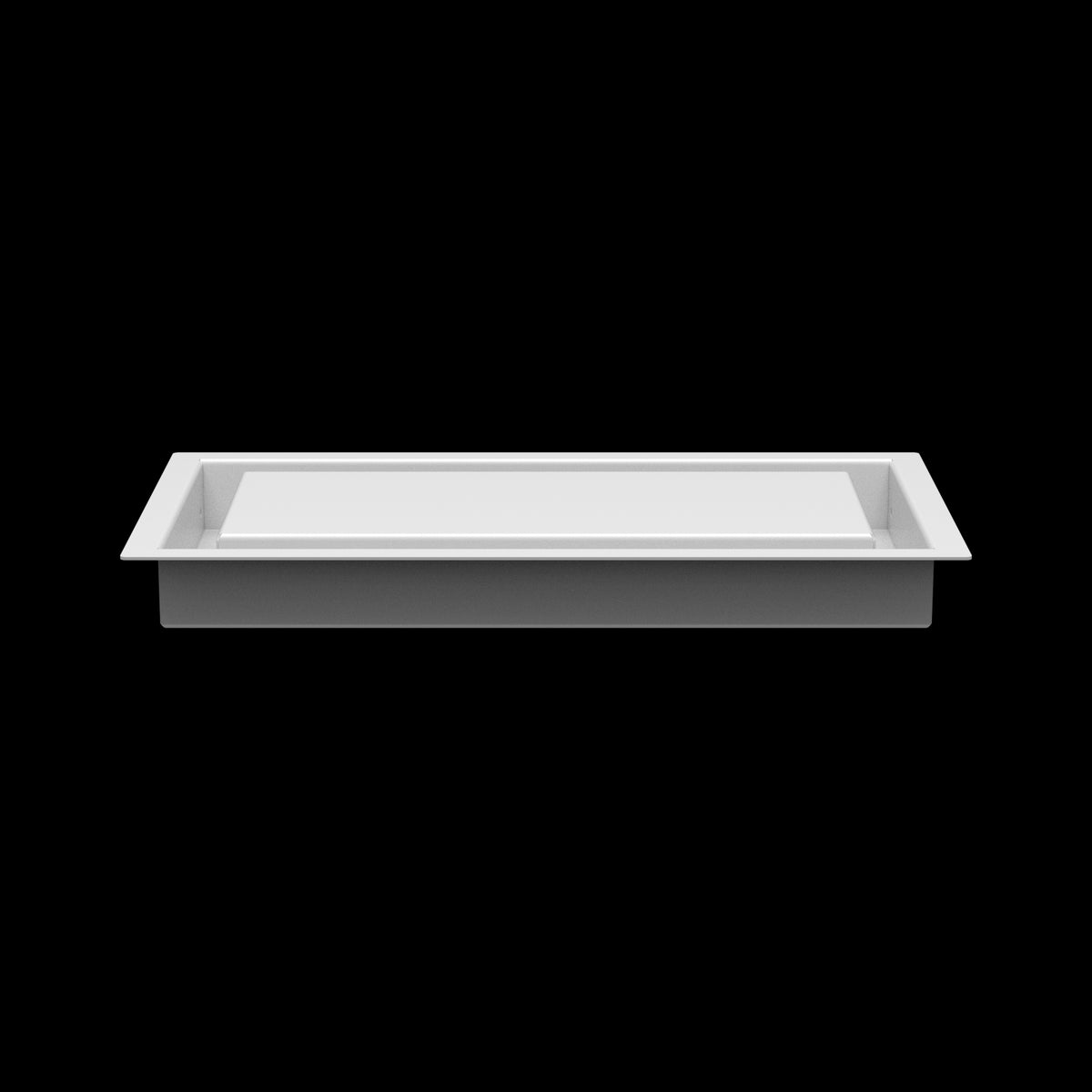

Flush-Mount Steel Grille: Industrial-grade carbon steel for a seamless look.
-

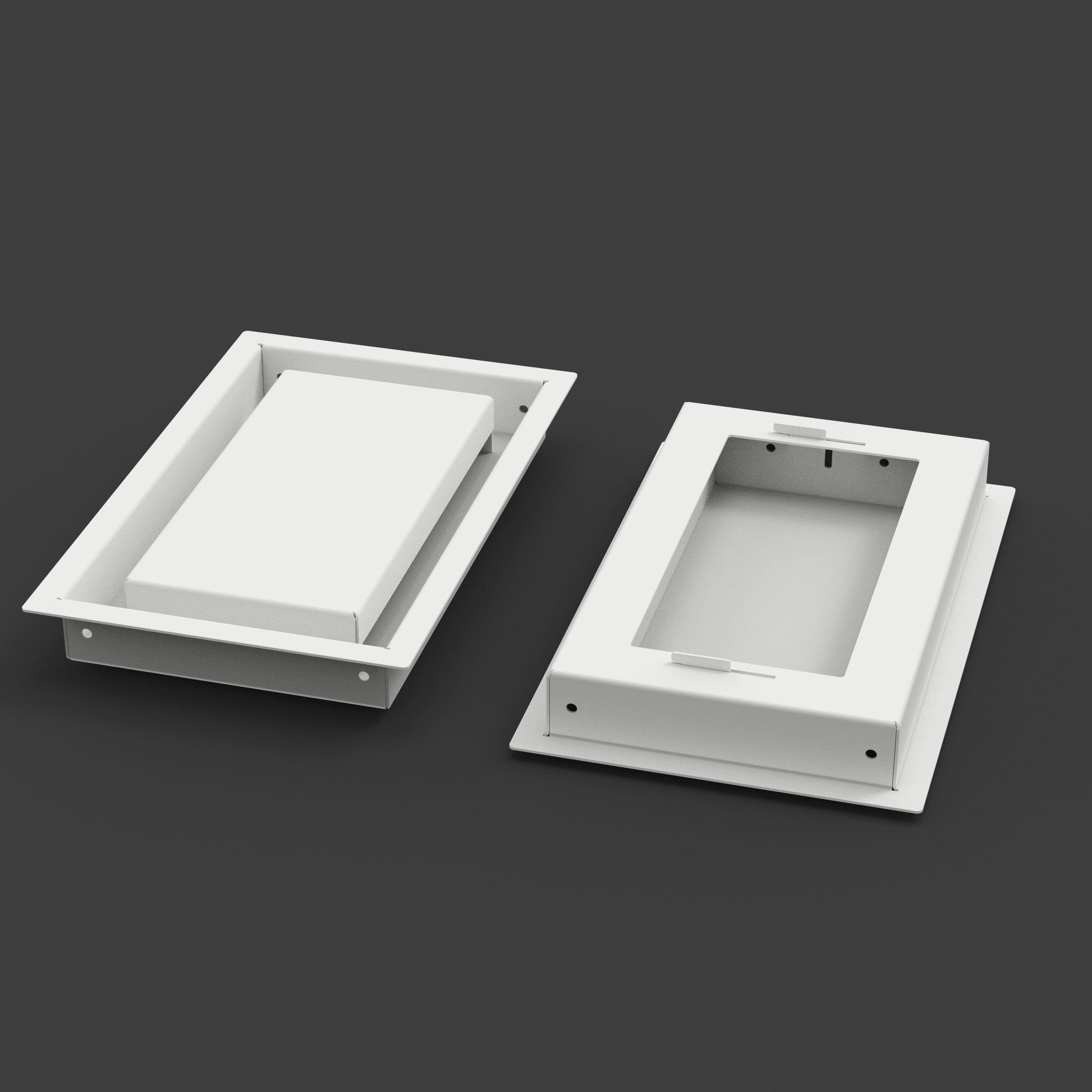

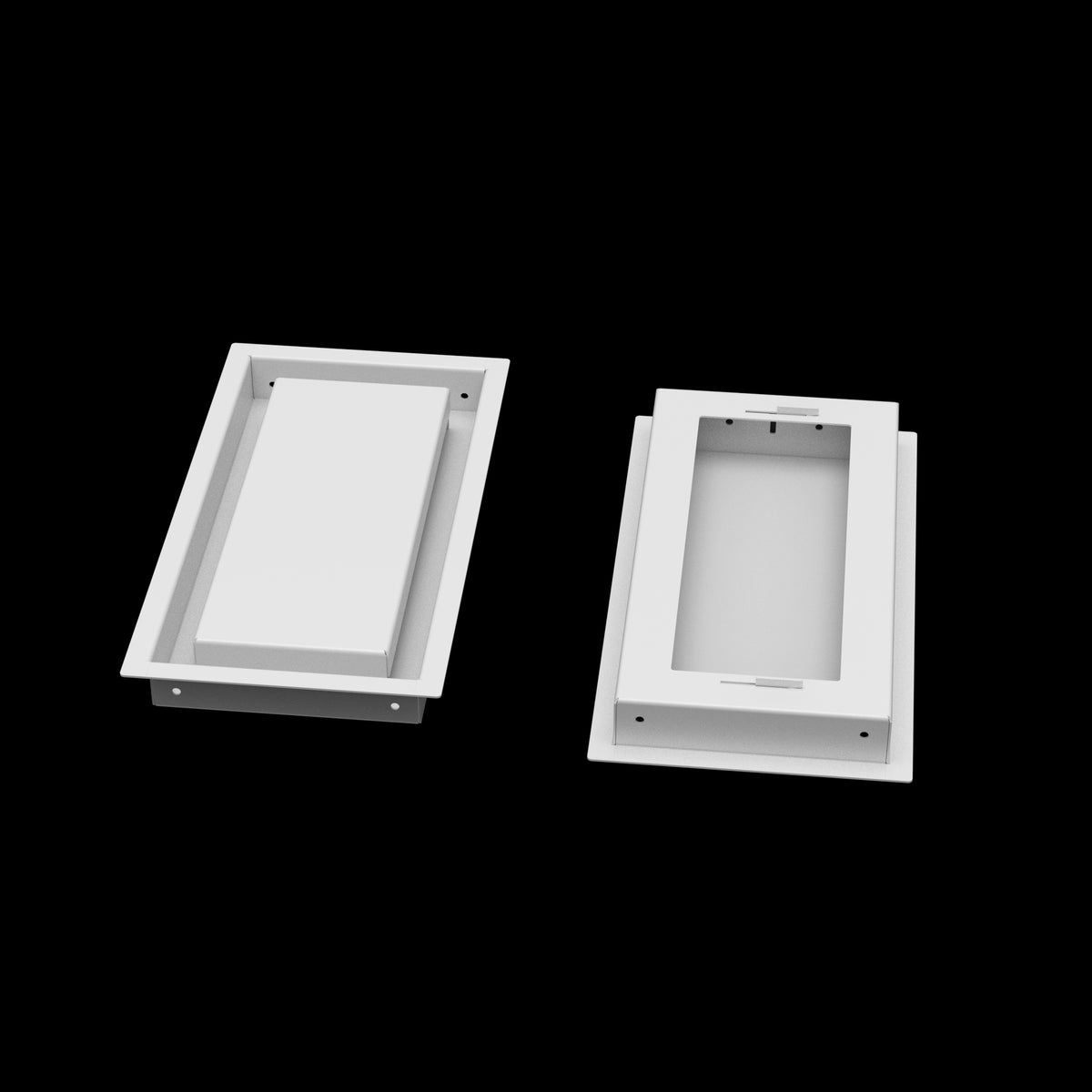

Superior Airflow: Unlike standard return air grilles, our 2-part design hides ugly screws.
-
Paint-Ready Matte Finish: This wall vent grille comes in powder-coated Matte White, ready to match any interior.
-
Ships from Canada - Fast Delivery
-
Guaranteed to fit your 6x12 duct or your money back
Airflow Performance Data (6 x 12)
Conservative engineering values.
Net free area 24.1 sq in • Area factor Ak 0.167 sq ft • Open area 33% of nominal
| Face Velocity (fpm) | Airflow (CFM) | Static Pressure (in. wg) | Throw 150 / 100 / 50 fpm (ft) |
|---|---|---|---|
| 400 | 67 | 0.01 | 3 / 6 / 11 |
| 600 | 100 | 0.03 | 5 / 8 / 16 |
| 800 | 134 | 0.06 | 6 / 11 / 21 |
| 1000 | 167 | 0.09 | 8 / 14 / 27 |
| 1200 | 201 | 0.13 | 9 / 17 / 32 |
| 1400 | 234 | 0.18 | 11 / 19 / 38 |
| 1600 | 268 | 0.24 | 12 / 22 / 43 |
Notes and Conditions
- Performance values are engineering calculations and estimates and are not yet laboratory certified. Certified ratings tested to ASHRAE 70-2006 and ADC 1062 will supersede this data once testing is complete.
- Airflow (CFM) is derived by continuity from the rated net free area at standard air density of 0.075 lb per cubic foot under isothermal conditions.
- The net free area shown is the conservative perimeter opening. Actual open area is greater, so delivered airflow meets or exceeds the listed values.
- Static pressure is a conservative calculated estimate referenced to the free-area velocity and carries an added margin. Tested values are expected to be lower.
- Throw values are estimates scaled to this product and are pending TRM ASHRAE 70 certification.
- Sound rating data is pending laboratory test.
- Dimensions are nominal and subject to manufacturing tolerance. Consult TRM Metal Products for applications beyond the conditions shown.
Disclaimer
This information is provided for general information only and is subject to change without notice. The values shown are preliminary engineering estimates, are not laboratory certified, and must not be used for code compliance, regulatory submission, or life safety system design until certified ratings are issued. Selection of the product and verification of its suitability for a given application are the responsibility of the system designer and purchaser. Installed performance varies with duct design, system static pressure, installation quality, and field conditions, all of which are outside the control of TRM Metal Products. To the fullest extent permitted by law, this data is provided as is, without warranty of any kind, express or implied, including any implied warranty of merchantability or fitness for a particular purpose, and TRM Metal Products assumes no liability for any loss, cost, or damage arising from its use or from reliance on it. All product names and trademarks are the property of their respective owners. TRM Metal Products is not responsible for typographical errors.
Shipping & Returns
Exclusive Offers
Secure Payments
100% Canadian made
Our products are proudly made in Canada to support our local economy and help create and keep jobs in our wonderful Country.
Since products are 100% made in Canada you can be assured that you will get products that are of high manufacturing standards and up to the expectations.
we spend more than 1.600 dollar on vent covers.
biggest waste of money.
to start that they will not come with screws.for that money you would expect something. The product itself looks good. but the sounds that they make are awful. it looks like we have heavy rain on our roof the whole day. on top of that there is barely any air coming out.
I would not recommend! they look sleek and nice. but we are ending up changing them back to they way they where. again waist of money.
Hi Wouter, thank you for the feedback, and we're sorry the vents haven't worked out, especially on an order this size. We don't include screws because walls, framing and duct connections vary so much that the installer is the best judge of which fasteners will hold. A sound like rain and weak airflow at a grille usually come down to matching the vent size to the airflow in the duct. Each size's product page lists its airflow data for exactly that. If you'd like help choosing, please contact us directly.
Vent is perfect! The quality is great and is mounts easily.
Great
Very beautiful and quality
Thank you Tatiana. Glad the 25x8.5 modern return air vent cover looks as good as it performs.
